Product Details:
|
| Color: | Black | Resolution: | 4k*2k 60Hz (YUV 4:4:4) |
|---|---|---|---|
| Certification: | CE,FCC And RoHs | Delivery Method: | Carton Box |
| Project Techncial Supported: | YES | Product Name: | 4K HDMI Video Wall Controller Using For Full HD Lcd Ultra Thin Lcd Monitor Video Wall Mounted Advertising Display |
| Highlight: | 4kx2k HDMI Video Wall Controller,9pin HDMI Video Wall Controller,60Hz HDMI Video Wall Processor |
||
4K HDMI Video Wall Controller Using For Full HD Lcd Ultra Thin Lcd Monitor Video Wall Mounted Advertising Display
Description:

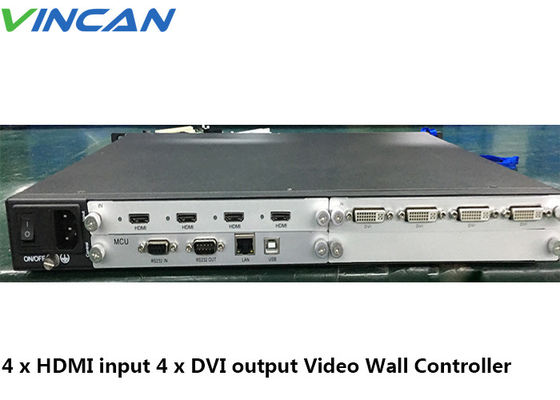

4 in 4 out HDMI Modular Video Wall Processor is a Hardware-based architecture and modular design makes it able to be personalized and customized with different types of card inputs and outputs, is a high performance video processing workstation with pure hardware architecture; 4 4 in 4 out HDMI Modular Video Wall Processor supports signal preview, video-wall mirroring (Confidence Monitoring), audio-video synchronized switching, scrolling text and Real-time PC control with RS232, 4 in 4 out HDMI Modular Video Wall Processor widly used for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc. Advanced image processing technologies such as high definition video signal collecting, real time and high resolution digital image processing. It also employs large-capacity, high-speed FPGA and CrossPoint switch to ensure the real-time processing of all input signal and the consistency of the data, leading to no image delay, discretization, frame loss, which guarantee excellent video displaying.
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | 4K HDMI Video Wall Controller Using For Full HD Lcd Ultra Thin Lcd Monitor Video Wall Mounted Advertising Display |
