Product Details:
|
| Video Deep Color: | 8 Bits | Video Impedence: | 100 Ohm |
|---|---|---|---|
| RS232 Connector: | Phoenix | Work Time: | 7 & 24 H |
| Warranty Time: | 1 Year | Product Name: | UHD 1080p 1x6 HDMI HDBaseT Extender / Splitter + Receivers 195ft |
| Highlight: | 195ft HDMI HDBaseT Extender,HDMI HDBaseT Extender Splitter,1x6 HD Video Extender |
||
Product Features
1. Adopt HDBase-T technique,full digital, uncompressed, no time delay transmission;
2. Transmission rate can reach10Gbps;
3. Maximum 4K×2K resolution;
4. Support HDCP standard;
5. Compatible with HDMI signal;
6. IR function (optional);
7. Remote switch function (optional);
8.70 M HDMI DVI USB HDBaseT Extender Over RJ45;
9.UHD 1080p 1x 6 HDMI HDBaseT Extender / Splitter + Receivers 195ft
Production Specifications
| Function | Number of input signal | Transmitter:4CHs(HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | UHD 1080p 1x6 HDMI HDBaseT Extender / Splitter + Receivers 195ft | |
Connection diagram :

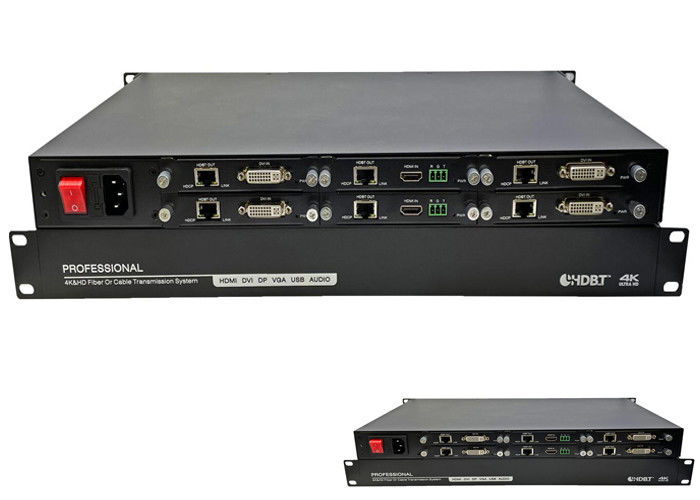

UHD 1080p 1x6 HDMI HDBaseT Extender / Splitter + Receivers 195ft
