Product Details:
|
| Dimensions (mm): | 65(W) X 100 (D) X 25 (H) | Weight: | 3 Kg |
|---|---|---|---|
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F | Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (Non-condensing) | Product Name: | 4K HDMI HDBaseT Video Extender Transmitter With 6 Ports 70 M HDBaseT |
| Highlight: | 4K Video Extender Transmitter,HDBaseT Video Extender Transmitter,6Ports HD Video Extender |
||
Features
1. One pair as a full functional module, no need for setting.
2. POE (Power Over Ethernet) function support, either TX or RX powered 12V@2.5A,another device will
no need power form the DC jack. POE 3. Power Consumption less than 10W.
4.Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
5. UTP cable termination follows the standard of IEEE-568B.
6.4K HDMI HDBaseT Video Extender Transmitter With 6 Ports 70 M HDBaseT .
Production Specifications
| Function | Number of input signal | Transmitter:4CHs(HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 4K HDMI HDBaseT Video Extender Transmitter With 6 Ports 70 M HDBaseT | |
Connection diagram :

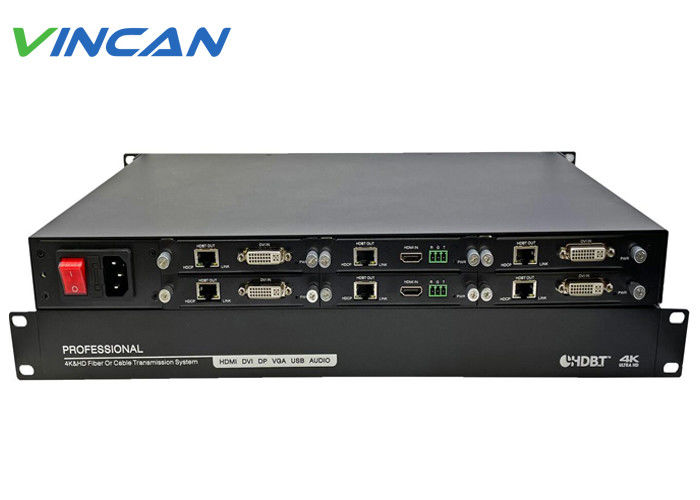

4K HDMI HDBaseT Video Extender Transmitter With 6 Ports 70 M HDBaseT
