Product Details:
|
| Video Input Interface: | HDMI And DVI-I | Video Output Interface: | HDMI And DVI-I |
|---|---|---|---|
| Resolution: | 1080p/1080i/720p/720i/576p/576i/480p/480i Maximum Support 4K×2K | Maximum Transfer Rate: | 10Gbps |
| Remote-control Interface: | 3.5mm Audio Port | Product Name: | 4k 12 Ports Hdbaset HDMI Hdbt Transmitter Extender Hdbaset To Hdmi Converter |
| Highlight: | 12 Ports HDBT Transmitter,HDBaseT To HDMI HDBT Transmitter,HDBT HD Video Extender |
||
Features:
• Support HDCP
• Support uncompressed HDMI signal.
• Enables HDMI10.2 Gbps and IR signal in parallel over a single 70m Cat5e/6 cable.
• Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
• Support 1080p@60Hz@48bit pixels. 4K x 2K.
• Support 3D pass-through.
• Support CEC pass-through.
• Supports uncompressed audio such as LPCM.
• Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
• Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending
IR commands received in the vicinity of the Display back to the Source devices.
• Support RS232 pass-through.
• Support POC.

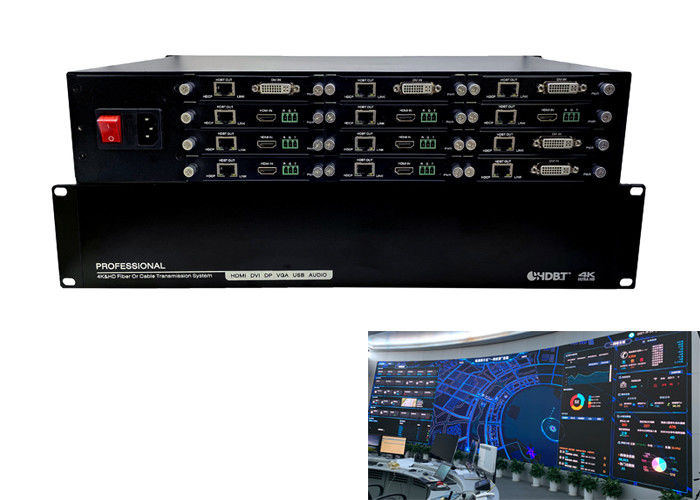

• 4k 12 Ports Hdbaset HDMI Hdbt Transmitter Extender Hdbaset To Hdmi Converter
Production Specifications
| Function | Number of input signal | Transmitter:4CHs(HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 4k 12 Ports Hdbaset HDMI Hdbt Transmitter Extender Hdbaset To Hdmi Converter | |
Connection diagram :
4k 12 Ports Hdbaset HDMI Hdbt Transmitter Extender Hdbaset To Hdmi Converter
