Product Details:
|
| HDBaseT Receivers: | Support 12 Pcs | Connector: | Type A HDMI Female |
|---|---|---|---|
| HDMI Cable: | 15 Meters | Direction: | Bidi |
| Baud Rate: | Max 115200 Bps | Product Name: | 4K HDMI HDBaseT Video Extender Transmitter With 12 X HDBaseT Ports |
| Highlight: | Female Connector Video Extender Transmitter,HDMI Video Extender Transmitter,Bidi HD Video Extender |
||

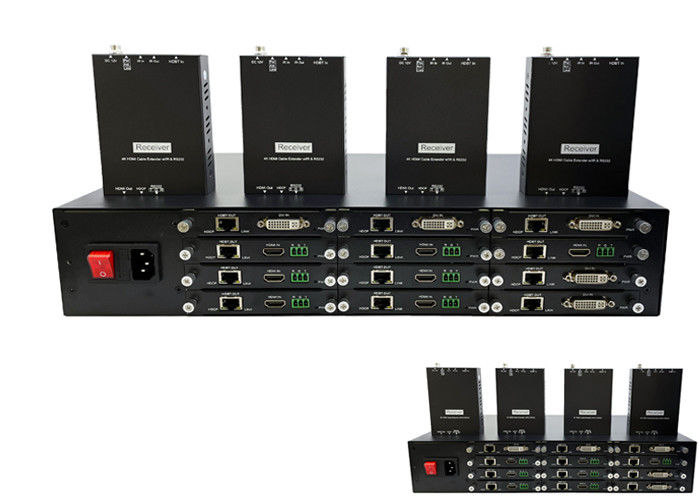

4K HDMI HDBaseT Video Extender Transmitter With 12 x HDBaseT ports
Applications :
• Blu-ray. DVD players and recorders
• Digital set-top-boxes (STBs)
• A/V receivers
• Game consoles
• PCs
• HDMI repeaters, splitters and switches
• DTVs, LCDs and plasma displays
• Rear and front projectors
• 4K HDMI HDBaseT Video Extender Transmitter With 12 x HDBaseT ports.
Package
HDMI Extender Transmitter---------------------------------------------------------1PC
HDMI Extender Receiver ------------------------------------------------------------ 1PC
IR Transmitter -------------------------------------------------------------------------- 2PCS
IR Receiver ----------------------------------------------------------------------------- 2PCS
12V2.5A DC Power Supply adapter ------------------------------------------------ 1PCS
Operation Manual --------------------------------------------------------------------- 1PC
Production Specifications
| Function | Number of input signal | Transmitter:4CHs(HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 4K HDMI HDBaseT Video Extender Transmitter With 12 x HDBaseT ports | |
Connection diagram :
4K HDMI HDBaseT Video Extender Transmitter With 12 x HDBaseT ports
