Product Details:
|
| HDMI Resolution: | 1080P/1080i/720P/576P/576i/ | Video Color Bit: | 480P/480i Deep Color 24bit/36biV48bit |
|---|---|---|---|
| Audio Format: | LPCM/Dolby-AC3/DTS7.1/DSD .5 To 90%RH | Power Adapter Format: | Input AC (50Hz.60Hz) 100- 240V |
| Power Supply: | DC 12V 2A | Product Name: | Digital Link Hdbaset 4k Pro Hdbaset Extender Kit 4k Hdbaset Extender Splitter |
| Highlight: | 4k Pro Hdbaset Extender Kit,Cat6 Hdbaset Extender Kit,Cat5e HD Video Extender |
||

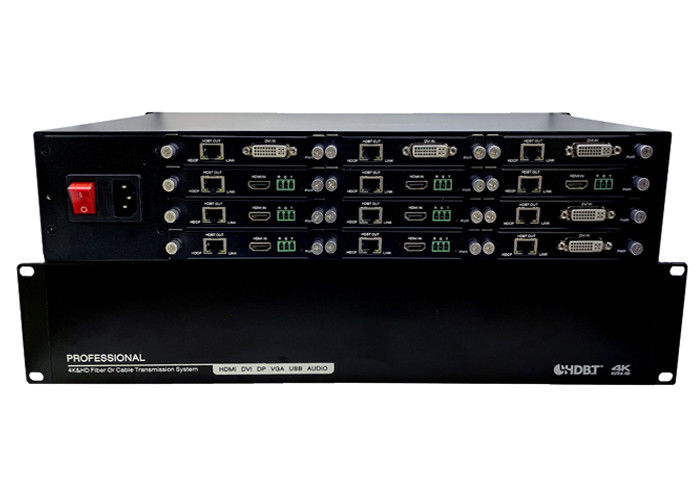

Digital Link Hdbaset 4k Pro Hdbaset Extender Kit 4k Hdbaset Extender Splitter
Introduction
The HDMI Extender over cat5e/cat6 supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 70 meters outside, also you can control the Sink in the Source side which is 70 meters outside using the HDMI Extender. Digital Link Hdbaset 4k Pro Hdbaset Extender Kit 4k Hdbaset Extender Splitter.
Production Specifications
| Function | Number of input signal | Transmitter:12-CH(DVI,USB,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,USB,IR,Remote switch) | |
| Transmission distance |
WL-HBT70:0-70m WL-HBT100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | Digital Link Hdbaset 4k Pro Hdbaset Extender Kit 4k Hdbaset Extender Splitter | |
Application diagram:
Digital Link Hdbaset 4k Pro Hdbaset Extender Kit 4k Hdbaset Extender Splitter
