Product Details:
|
| 1080p@60Hz@48bit Pixels. 4K X 2K.: | Support | 3D: | Support |
|---|---|---|---|
| CEC Pass-through: | Support | Uncompressed Audio Such As LPCM: | Support |
| RS232 Pass-throug: | Support | Product Name: | 12 Ports HDMI HDBaseT CAT5e/6/7 Extender Splitter PoC Dual IR RS-232 3D |
| Highlight: | CAT5e HDMI HDBaseT Extender,Splitter HDMI HDBaseT Extender,RS232 HD Video Extender |
||

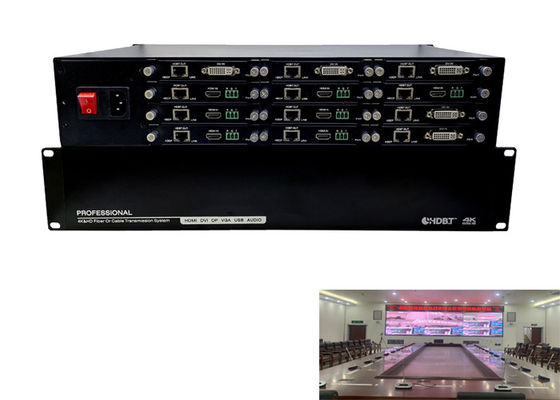

12 Ports HDMI HDBaseT CAT5e/6/7 Extender Splitter PoC Dual IR RS-232 3D
Introduction
The 12 Ports HDMI HDBaseT CAT5e/6/7 Extender Splitter PoC Dual IR RS-232 3D is a tool for extending your HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Internet cable.
Production Specifications
| Function | Number of input signal | Transmitter:12-CH(DVI,USB,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,USB,IR,Remote switch) | |
| Transmission distance |
WL-HBT70:0-70m WL-HBT100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 12 Ports HDMI HDBaseT CAT5e/6/7 Extender Splitter PoC Dual IR RS-232 3D | |
Connection picture:
12 Ports HDMI HDBaseT CAT5e/6/7 Extender Splitter PoC Dual IR RS-232 3D
