Product Details:
|
| 3D Pass-through: | Support | IR: | Support |
|---|---|---|---|
| No Latency: | Support | RS232 Pass-through: | Support |
| POC: | Support | Product Name: | Hdbaset Over Ip Hdmi Extender Hdmi Over Hdbaset Extender Kit |
| Highlight: | HDCP Ip Hdmi Extender,Hdbaset Ip Hdmi Extender,Ip Hdbaset Extender Kit |
||

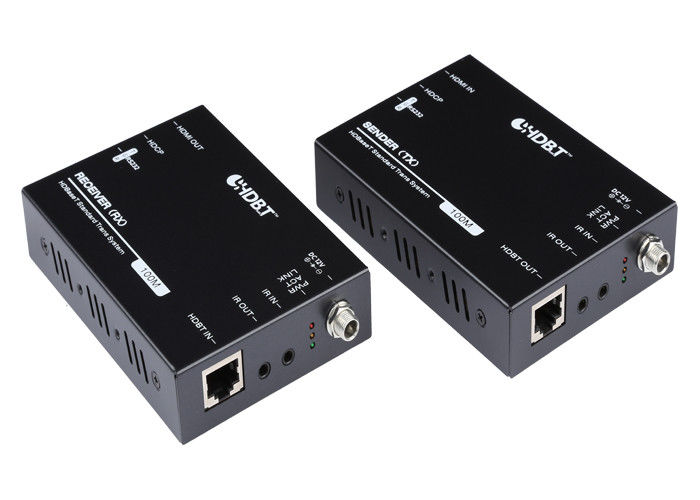

Hdbaset Over Ip Hdmi Extender Hdmi Over Hdbaset Extender Kit
Features:
• Support HDCP.
• Support uncompressed HDMI signal.
• Enables HDMI10.2 Gbps and IR signal in parallel over a single 70m Cat5e/6 cable.
• Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
• Support 1080p@60Hz@48bit pixels. 4K x 2K.
• Support 3D pass-through.
• Support CEC pass-through.
• Supports uncompressed audio such as LPCM.
• Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
• Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending
IR commands received in the vicinity of the Display back to the Source devices.
• Support RS232 pass-through.
• Support POC.
• Hdbaset Over Ip Hdmi Extender Hdmi Over Hdbaset Extender Kit
Specifications:
| Frequency Bandwidth | 2.97Gbps |
| HDMI Transmitter Input/Output Ports | 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| Power Supply | DC 12V 2.5A |
| ESD Protection Human Body Model: | ± 8kV (air-gap discharge);± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Weight | 200g x 2 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
| Product name | Hdbaset Over Ip Hdmi Extender Hdmi Over Hdbaset Extender Kit |
Connection picture:
Hdbaset Over Ip Hdmi Extender Hdmi Over Hdbaset Extender Kit
