Product Details:
|
| USB Protocol: | Only Support USB Keyboard And Mouse | Power Consumption: | 5 W |
|---|---|---|---|
| Size (L×W×H): | 112.4mm×78.9mm×27.9mm | Material: | Steel Casing |
| Color: | Black | Product Name: | 4k Hdbaset HDMI Over Cat5 4k Extender With 12 X Hdmi Inputs And 12 X HDBaseT Outputs |
| Highlight: | 4k HDMI Over Cat5 Extender,HDBaseT HDMI Over Cat5 Extender,12X HD Video Extender |
||
Product Introduction:

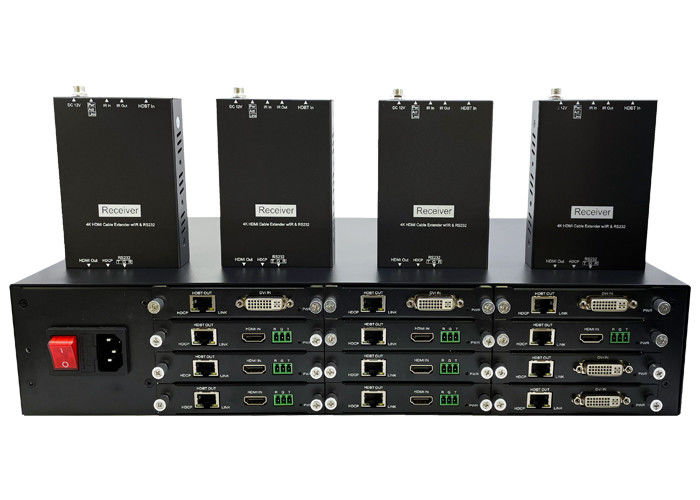

The 4k Hdbaset HDMI Over Cat5 4k Extender With 12 X Hdmi Inputs And 12 X HDBaseT Outputs is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the DVI video,USB signal,remote switch, infrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system,
bank stock system etc.
Production Specifications
| Function | Number of input signal | Transmitter:12-CH(DVI,USB,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,USB,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 44k Hdbaset HDMI Over Cat5 4k Extender With 12 X Hdmi Inputs And 12 X HDBaseT Outputs | |
Connection diagram :
4k Hdbaset HDMI Over Cat5 4k Extender With 12 X Hdmi Inputs And 12 X HDBaseT Outputs
