Product Details:
|
| Certificate: | CE,FCC,RoHs | HDCP Version: | HDCP1.4 |
|---|---|---|---|
| Support HDMI Resolution: | 1080P/1080i/720P/576P/576i/480P/480i | Support Video Color Bit: | Deep Color 24bit/36bit/48bit |
| Support Audio Format: | LPCM/Dolby-AC3/DTS7.1/DSD | Product Name: | Hdbaset Hdmi Over Cat5 4k Hdbaset Extender HDMI Hdbt Transmitter And Receiver |
| Highlight: | Hdmi Over Cat5 4k Hdbaset Extender,Hdbt 4k Hdbaset Extender,FCC HD Video Extender |
||

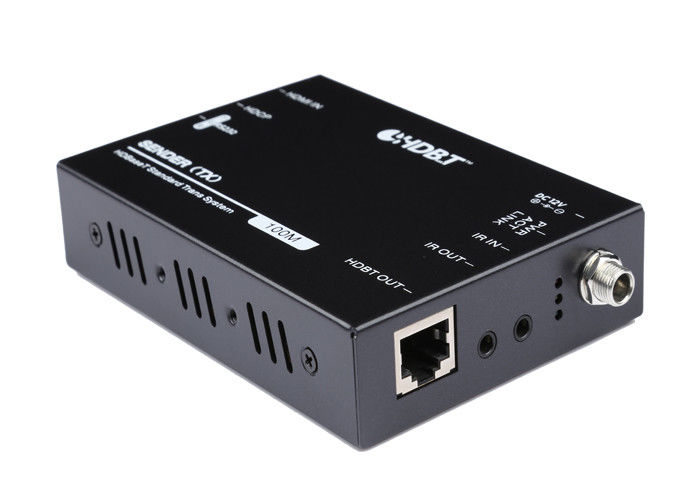

Hdbaset Hdmi Over Cat5 4k Hdbaset Extender HDMI Hdbt Transmitter And Receiver
Description:
HDMI version………………HDMI v1.4a
HDCP version..…………………………………HDCP1.4
Support HDMI resolution…………………………1080P/1080i/720P/576P/576i/480P/480i
Support video color bit…………………deep color 24bit/36bit/48bit
Support audio format………………………LPCM/Dolby-AC3/DTS7.1/DSD
Operating Humidity range……………………5 to 90%RH (No Condensation)
Operating Temperature range………………-15 to +55C°(5 to 131°F)
Power adapter format..........................Input AC (50Hz.60Hz)100-240V
Power Supply.…………………………DC 12V 2A
Product name.....................................Hdbaset Hdmi Over Cat5 4k Hdbaset Extender HDMI Hdbt Transmitter And Receiver
Specifications:
| Frequency Bandwidth | 2.97Gbps |
| HDMI Transmitter Input/Output Ports | 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| Power Supply | DC 12V 2.5A |
| ESD Protection Human Body Model: | ± 8kV (air-gap discharge);± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Weight | 200g x 2 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
| Product name | Hdbaset Hdmi Over Cat5 4k Hdbaset Extender HDMI Hdbt Transmitter And Receiver |
Connection picture:
Hdbaset Hdmi Over Cat5 4k Hdbaset Extender HDMI Hdbt Transmitter And Receiver
