Product Details:
|
| Centralized Power Supply: | Support | POC: | Support |
|---|---|---|---|
| Package: | Carton Box | Transmission Distance: | 70 M Or 100 M |

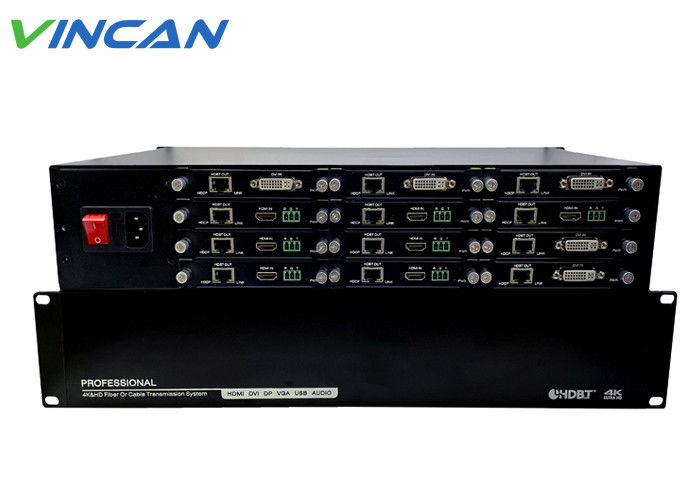

| Color: | Black | Product Name: | 4k 12 In 12 Out Hdmi Matrix Extender HDMI Hdbaset Extender |
| Highlight: | 12 In Hdmi Matrix Extender,4k Hdmi Matrix Extender,4k HDMI Hdbaset Extender |
||
Product Introduction
This Basic 70 Meter HDMI via HDBaseT Extender Kit includes a Sender and a Receiver, which can extend HDMI
interface of computer max up to 70 meters over single CAT5E cable. 4k 12 in 12 out hdmi matrix extender HDMI
hdbaset extender .
Product Specification:
HDMI version………………HDMI v1.4a
HDCP versio..…………………………………HDCP1.4
Support HDMI resolution…………………………1080P/1080i/720P/576P/576i/480P/480i
Support video color bit…………………deep color 24bit/36bit/48bit
Support audio format………………………LPCM/Dolby-AC3/DTS7.1/DSD
Operating Humidity range……………………5 to 90%RH (No Condensation)
Operating Temperature range………………-15 to +55C°(5 to 131°F)
Power adapter format..........................Input AC (50Hz.60Hz)100-240V
Power Supply.…………………………DC 12V 2A
Product name.....................................4k 12 in 12 out hdmi matrix extender HDMI hdbaset extender.
Production Specifications
| Function | Number of input signal | Transmitter:12-CH(DVI,HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | 4k 12 in 12 out hdmi matrix extender HDMI hdbaset extender | |
Using application diagram:
4k 12 in 12 out hdmi matrix extender HDMI hdbaset extender
