Product Details:
|
| Warranty: | 2 Years | AV Input And Output: | HDMI |
|---|---|---|---|
| Cabling: | Cat 5e UTP Or Better | Max Distance: | 70 M / 230 Ft |
| Supported Resolutions: | 3840x2160 (4K) | Product Name: | Hdbaset Extender Kit HDMI Hdbaset Extender With Ethernet |
| Highlight: | 3840x2160 HDBaseT Extender Kit,4K HDBaseT Extender Kit,RoHs HD Video Extender |
||
HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K
Introduction
4k HDMI Pro Hdbaset Extender Kit HDMI Hdbaset Extender With Ethernet extends HDMI up to 230 feet (70 Meters) over a single
CAT5e orCAT6 cable.The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D andthe accompanying digital audio.For added versatility, both the transmitter and receiver can be poweredby the same single power source using Power Over Cable (POC).
The versatility of this video extendermakes it an ideal solution for digital signage applications in large buildings such as commercial shoppingcenters, stadiums, schools, and hospitals.
Specifications
| Frequency Bandwidth | 2.97Gbps |
| HDMI Transmitter Input/Output Ports | 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| Power Supply | DC 12V 2.5A |
| ESD Protection Human Body Model: | ± 8kV (air-gap discharge);± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Weight | 200g x 2 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
| Product name | 4k HDMI Pro Hdbaset Extender Kit HDMI Hdbaset Extender With Ethernet |
Connection picture:

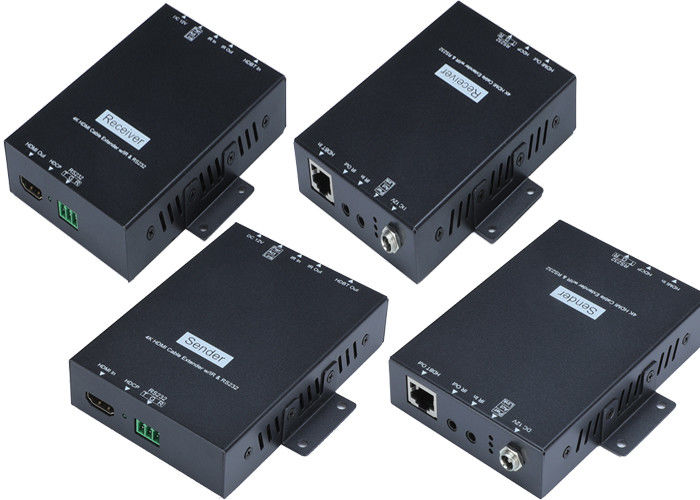

4k HDMI Pro Hdbaset Extender Kit HDMI Hdbaset Extender With Ethernet
