Product Details:
|
| Number Of Input Signal: | Transmitter:1CH(DVI,USB,IR,Remote Switch） | Number Of Output Signal: | Receiver:1CH(DVI,USB,IR,Remote Switch） |
|---|---|---|---|
| Transmission Distance: | 70 Meters And 100 Meters | Resolution: | 1080p/1080i/720p/720i/576p/576i/480p/480i Maximum Support 4K×2K |
| Maximum Transfer Rate: | 10Gbps | Product Name: | 70 Meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set Over Cat6 |
| Highlight: | 70M HDBaseT HDMI Extender,10Gbps HDBaseT HDMI Extender,Steel Casing HD Video Extender |
||

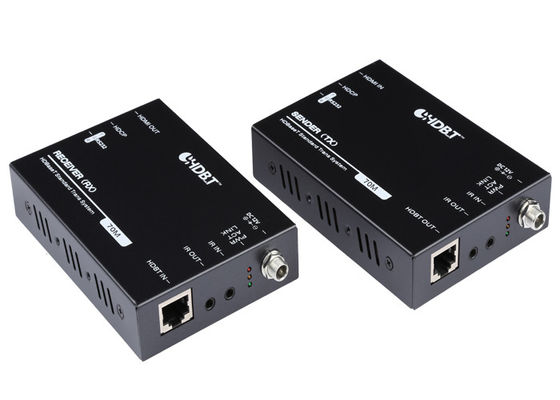

70 meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set over Cat6
Product Introduction:
The 70 meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set over Cat6 with 4K @ 60Hz 4 : 4 : 4 is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the DVI video,USB signal,remote switch, infrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system,
bank stock system etc.
Specifications
| Frequency Bandwidth | 2.97Gbps |
| HDMI Transmitter Input/Output Ports | 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| Power Supply | DC 12V 2.5A |
| ESD Protection Human Body Model: | ± 8kV (air-gap discharge);± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Weight | 200g x 2 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
| Product name | 70 meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set over Cat6 |
Connection picture:
70 meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set over Cat6
