Product Details:
|
| ESD Protection Human Body Model:: | ± 8kV (air-gap Discharge);± 4kV (contact Discharge) | Output Voltage: | 12V DC |
|---|---|---|---|
| Protocol: | HDCP | Frequency Bandwidth: | 2.97Gbps |
| Power Supply: | DC 12V 2.5A | Product Name: | 70 Meter Hdbaset Cat6 4k Hdmi Extender Hdmi To Hdbaset Converter |
| Highlight: | Sender Usb Extension Kit,150M Usb Extension Kit,USB 2.0 HD Video Extender |
||
Using Applications :
• Blu-ray. DVD players and recorders.
• Digital set-top-boxes (STBs).
• A/V receivers.
• Game consoles.
• PCs.
• HDMI repeaters, splitters and switches.
• DTVs, LCDs and plasma displays.
• Rear and front projectors.
• 70 Meter Hdbaset Cat6 4k Hdmi Extender Hdmi To Hdbaset Converter.
Specifications
| Frequency Bandwidth | 2.97Gbps |
| HDMI Transmitter Input/Output Ports | 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver |
| Power Supply | DC 12V 2.5A |
| ESD Protection Human Body Model: | ± 8kV (air-gap discharge);± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Weight | 200g x 2 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
| Product name | 70 Meter Hdbaset Cat6 4k Hdmi Extender Hdmi To Hdbaset Converter |
Connection picture:

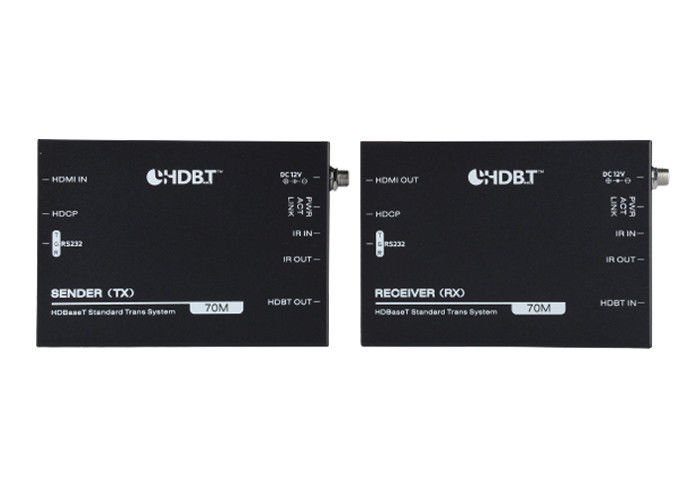

70 Meter Hdbaset Cat6 4k Hdmi Extender Hdmi To Hdbaset Converter
