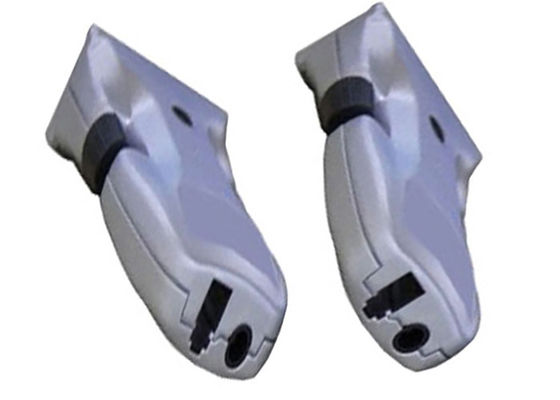

1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver

1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver
1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver 1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver

Large Image :  1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-FD04-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1 pairs
Price: Negotiable
Packaging Details: Carton box and standard export package for 1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pairs per week
Contact Now

1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver

Description
Weight: 0.18lbs [80g] Power Supply: 5V 1A DC
Operation Temperature: 32~131°F [0~55°C] Storage Temperature: -4~185°F [-20~85°C]
Relative Humidity: 5~95% RH [no Condensation] Product Name: 1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver
Highlight:

1 Core Dvi Fiber Extender

,

2km Dvi Fiber Extender

,

Mini Fiber Optical Transceiver

1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver

Description:

1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver via Fiber Optic Cable locates a single link digital DVI-D display up to

3,280 feet (1,000 meters) from a computer using a single LC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender

consists of a transmitter that connects to a computer and a receiver that connects to a monitor.



Specs:

Video
DVI Compliance DVI-D
Distance 984ft [300m]
Max Resolution 1920*1200@60Hz,4KX2K
Connectors
TX Connectors (1) DVI in, (1)LC
RX Connectors (1) DVI out, (1) LC
Mechanical
Dimensions 65 x 39 x 15mm(L/W/H)
Weight 0.18lbs [80g]
Power
Power Supply 5V 1A DC
Environmental
Operation Temperature 32~131°F [0~55°C]
Storage Temperature -4~185°F [-20~85°C]
Relative Humidity 5~95% RH [no condensation]
Product name 1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver



Connection diagram of the 1core LC 2km Dvi Fiber Extender Mini Dvi Fiber Optical Transceiver :

1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver 0

Application of the MINI Dvi Fiber Extender :

1 Core LC 2km Dvi Fiber Extender , Mini Fiber Optical Transceiver 1
