Product Details:
|
| Operating Temperature Range: | -5 To +35°C | Operating Humidity Range: | 5 To 90 % RH (no Condensation) |
|---|---|---|---|
| Input Video Signal: | 0.5-1.0 Volts P-p | Audio Output: | Stereo |
| Fiber Wavelength: | 1310nm /1550nm FP | Product Name: | Mini 2 Cores DVI Over Fiber Optic Extender Singlemode Multimode Duplex 1080P |
| Highlight: | 2 Cores Fiber Optic Extender,DVI Over Fiber Optic Extender,1080P HD Video Extender |
||
Description:
Mini 2 Cores DVI Over Fiber Optic Extender Singlemode Multimode Duplex 1080P Support Study EDID is a extender device
of high-definition video transmission use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances,
it support audio transmission; This product is ideal for large-screen display, conferencing systems and home entertainment and so on.
The device has the ability of anti-interference, to ensure the stability of the signal.
Features:
1.Long-distance transmission of DVI, audio, RS-232 signals via a single optical fiber.
2. All-digital, uncompressed, high-definition optical fiber transmission.
3. HDCP unvarnished transmission, EDID unvarnished transmission
4. The sender supports DVI audio transmission and independent stereo transmission.
5. The receiver DVI can take the audio output and a separate stereo output.
6.Supports 1080p 60Hz, single-mode fiber transmission up to 1 km.
7.Real-time transmission of high-definition uncompressed DVI digital video signal, the video is clear and stable
8.Support for serial unvarnished transmission, baud rate can adapted by itself.
9.Support KVM function.
10.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
11.Site installation: easy, plug and play, no need to set
12. DVI Uncompressed Fiber Optic Extender With RS232 Kvm Support Study EDID
13.Mini 2 Cores DVI Over Fiber Optic Extender Singlemode Multimode Duplex 1080P
Specs:
| Video | |
| DVI Compliance | DVI-D |
| Distance | 4921ft [1500m] |
| Max Resolution | 1920*1200@60Hz |
| Connectors | |
| TX Connectors | (1) DVI in, (2)LC |
| RX Connectors | (1) DVI out, (2) LC |
| Mechanical | |
| Dimensions | 59 x 39 x 13mm(L/W/H) |
| Weight | 0.066lbs[30g] |
| Power | |
| Power Supply | 5V 1A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
| Product name | Mini 2 Cores DVI Over Fiber Optic Extender Singlemode Multimode Duplex 1080P |

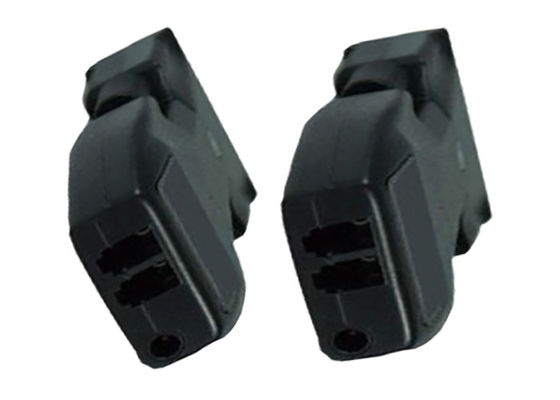

Detail pictures for Mini 2 Cores DVI Over Fiber Optic Extender Singlemode Multimode Duplex 1080P:
