Introduction:

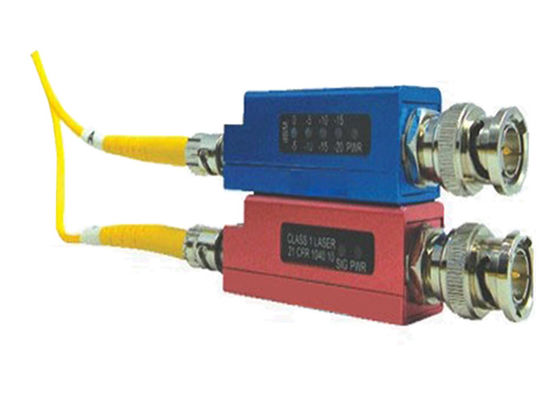

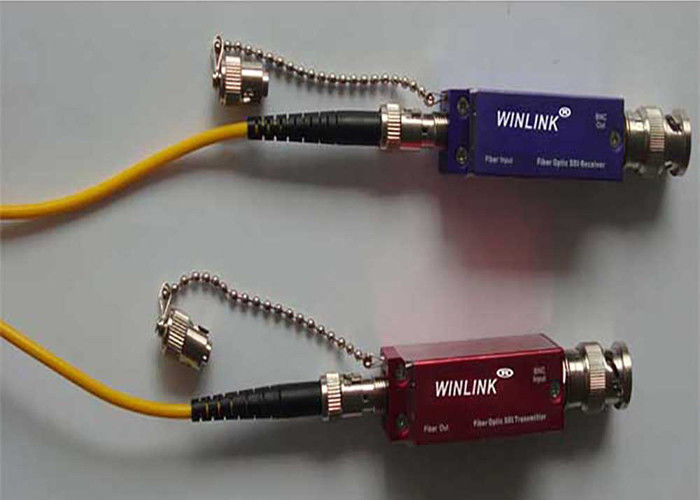

The transmitter accepts a 75ohm BNC input and converts it into an optical stream via a standard ST connector.
The receiver unit reconverts the uncompressed signal back to BNC output. The transmitter modules include
equalization for long lengths of coaxial cable, so you can use them at nearly any point in your SDI chain.
Both the 3G-SDI Fiber Extender BNC With Mini USB Power Supply modules include LED indicators to display Power On,
SDI signal presence.
Features:
1.Portable, lightweight units;
2.Reliable, efficient;
3. Quick, easy installation for 3G-SDI Fiber Extender BNC With Mini USB Power Supply;
4. Support SMPTE SDI and NTSC and PAL Resolution:
SD: 525i - 59.94Hz, 625i -50Hz;
HD: 720p - 25Hz / 29.97Hz / 30Hz;
720p - 50Hz / 59.94Hz / 60Hz;
1080i - 50Hz /29.7Hz/ 59.94Hz / 60Hz;
1080p -23.98Hz/24Hz/25Hz/29Hz/30Hz/59.94Hz/60Hz;
and 720*486 - 59.94hz, and 720*576 - 50hz, and 720*480 - 59.94hz
5.Supports SDI Both Level A and Level B
6.Supports 18CH CWDM 1270-1610nm, Default 1310nm
7.Supports singlemode fiber 20Km-100km Transfer Distance, Default 20KM
8.Supports multimode fiber 300M Transfer Distance
9.MINI 3G/HD/SD SDI 20KM@SM/300M@MM Fiber Extender Supports embedded audio
10.Support Any Rate from 5 Mbps to 3Gbps
11.Support Any Resolution under 1080p/60Hz, and support 1080p/60Hz
12.SMPTE 259M/344M/292M/424M compatible ,AND SUPPORT DVB-ASI low bit rate transmission
13.Transmitter ports:
75ohm BNC input port
ST fiber output port
14.Receiver ports:
75ohm BNC output port
ST fiber input port
15.LED indicators show you:
Power on
SDI data presence
16.Power from +5V/300mA adapter
17.Body size: 90*19*18mm
18.Working Temp.: -20 TO +70C
Applications of the 3G-SDI Fiber Extender BNC With Mini USB Power Supply :
• Sports teleproduction Golf, skiing, racing, etc.
• Remote camera links
• Cross-town fiber links
• Cross-campus production
• Courtesy feeds
Package List of the 3G-SDI Fiber Extender BNC With Mini USB Power Supply:
3G SDI TX*1
3G SDI RX*1
