Product Details:
|
| DVI Compliance: | DVI-D | Distance: | 1640ft [500m] |
|---|---|---|---|
| Max Resolution: | 1920*1200@60Hz | TX Connectors: | (1) DVI In, (4)LC |
| RX Connectors: | (1) DVI Out, (4) LC | Dimensions: | 59 X 39 X 15mm(L/W/H) |
| Weight: | 0.066lbs [30g] | Product Name: | DVI Extender Over 4 Cores Multi-mode Fiber Optic Cable |
| Highlight: | Multi Mode Dvi Over Fiber Extender,4 Cores Dvi Over Fiber Extender,LC Fiber HD Video Extender |
||
Description:

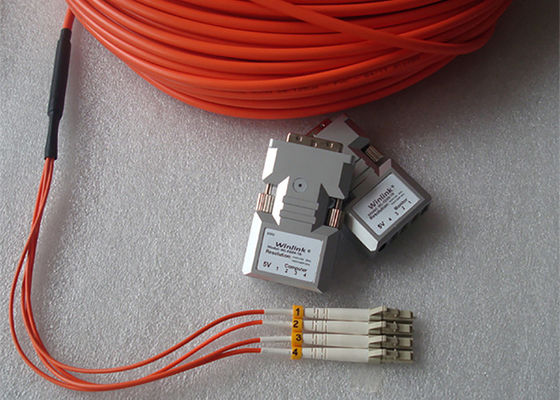

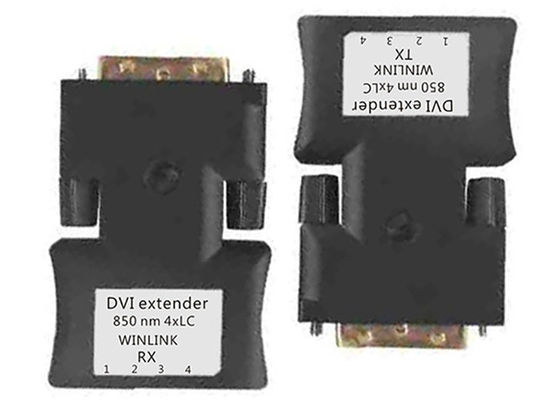

The WL-FD04-TR DVI Extender over 4 cores multi-mode fiber optic cable is a part of Winlink ‘s fiber optic transmission family.
Simple connections for DVI and Fiber provide a cleaner wiring solution. With 4 cores Multi-mode fiber optic, the WL-FD04-TR
can go up to 1640ft (500 M).1920 * 1200 @ 60 Hz & 1080P.
Features:
1.4 core multimode LC fiber for transmission;
2.Transmitter with EDID learning;
3. The highest video bandwidth: 1.65 Gbps;
4.The highest resolution: 1920×1200 @60Hz;
5.The longest transmission distance: 500m(OM3);
6.The transmitter can read and store EDID from displayer;
7.Small, concise, directly connect to DVI interfaces of source and display devices.
8.DVI Extender over 4 cores multi-mode fiber optic cable
Specs:
| Video | |
| DVI Compliance | DVI-D |
| Distance | 1640ft [500m] |
| Max Resolution | 1920*1200@60Hz |
| Connectors | |
| TX Connectors | (1) DVI in, (4)LC |
| RX Connectors | (1) DVI out, (4) LC |
| Mechanical | |
| Dimensions | 59 x 39 x 15mm(L/W/H) |
| Weight | 0.066lbs [30g] |
| Power | |
| Power Supply | 5V 2A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
| Product name | DVI Extender over 4 cores multi-mode fiber optic cable |
Application:
WL-FD04-TR :DVI Extender over 4 cores multi-mode fiber optic cable
