Product Details:
|
| DVI Compliance: | DVI-D | Distance: | 4921ft [1500m] |
|---|---|---|---|
| Max Resolution: | 1920*1200@60Hz | TX Connectors: | (1) DVI In, (2)LC |
| RX Connectors: | (1) DVI Out, (2) LC | Power Supply: | 5V 1A DC |
| Product Name: | MINI DVI Fiber Optic Extender Over Two Cores Fiber Cable | ||
| Highlight: | Mini DVI Fiber Optic Extender,1.65Gbps DVI Fiber Optic Extender,1A DC HD Video Extender |
||
Description:

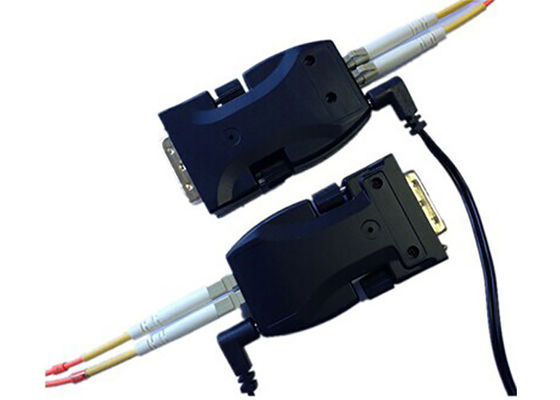

The WL-202 MINI DVI Fiber Optic Extender Over Two Cores Fiber Cable is part of Winlink ‘s fiber optic transmission family.
Simple connections for DVI and Fiber provide a cleaner wiring solution. With two single-mode fiber optic ,the WL-202 can
go up to 4921 ft (1500m), 1920 * 1200 @ 60 Hz & 1080 p.
Features:
1.Support multi-mode& single-mode fiber optic;
2.Transmitter with EDID learning;
3.The highest bandwidth: 1.65Gbps;
4.The highest resolution:1920×1200 @60Hz;
5.The longest transmission distance: 1500m;
6.Small, concise, directly connect to DVI interfaces of source and display devices.
7.MINI DVI Fiber Optic Extender Over Two Cores Fiber Cable;
Specs:
| Video | |
| DVI Compliance | DVI-D |
| Distance | 4921ft [1500m] |
| Max Resolution | 1920*1200@60Hz |
| Connectors | |

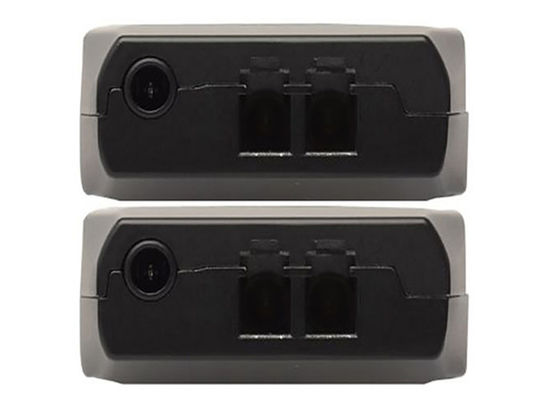

| TX Connectors | (1) DVI in, (2)LC |
| RX Connectors | (1) DVI out, (2) LC |
| Mechanical | |
| Dimensions | 59 x 39 x 13mm(L/W/H) |
| Weight | 0.066lbs[30g] |
| Power | |
| Power Supply | 5V 1A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
| Product name | MINI DVI Fiber Optic Extender Over Two Cores Fiber Cable |
Application:
WL-202 : MINI DVI Fiber Optic Extender Over Two Cores Fiber Cable
