18Gbps 2.0 Video HDMI Over Fiber Extender With Audio Extracting

This 18Gbps HDMI2.0 video over Optical Fiber Extender with Audio Extracting can extend HDMI signal up to 3300 feet/1000 meters (over single-mode fiber cable) or 1000 feet/300  meters (over multi-mode fiber cable). Video resolution is up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embeding and EDID managment function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.



Technical of the 18Gbps HDMI2.0 video over Optical Fiber Extender :
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	480i~1080p50/60Hz,4Kx2K@24/30Hz,4k2k@60Hz
Color Space	RGB,YCbCr 4:4:4/4:2:2,YUV 4:2:0
Color Depth	8/10/12-bit(1080P60Hz) 8-bit (4K60Hz)
HDMI Audio Formats	LPCM2/5.1/7.1CH,Dolby Digital/Plus/EX,Dolby True HD, HDMI Audio Formats DTS,DTS-EX,DTS-96/24,DTS High Res, DTS-HD Master Audio,DSD
Transmission distance	Up to 3300 feet/1000 meters over single-mode fiber cable; Up to 1000 feet/300 meters over multi-mode fiber cable;
IR Frequency	20KHz-60KHz
RS-232 Baud Rate	4800-115200bps
ESD Protection	Human body model-±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection of the 18Gbps HDMI2.0 video over Optical Fiber Extender

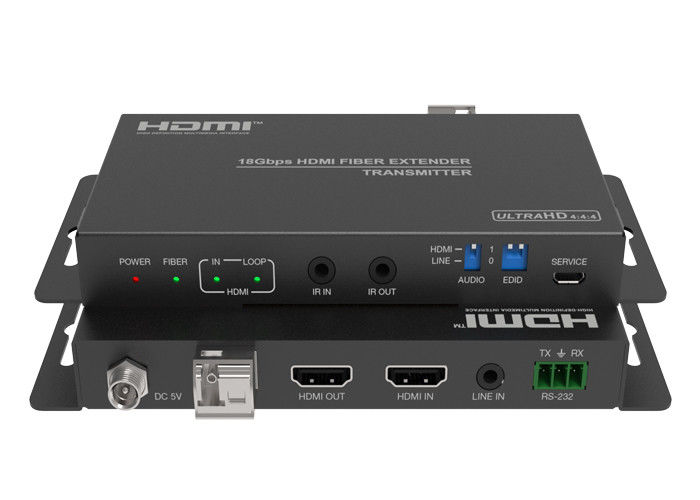

Transmitter	Input: 1 x HDMI IN[Type A 19-pin female] 1 x LINE IN[3.5mm Stereo Mini-jack] 1 x IR IN[3.5mm Stereo Mini-jack] 1 x RS-232 [3.81mm Phoenix connector] 1 x SERVICE [Micro USB, Update port] Output: 1 x HDMI OUT [Type A 19-pin female] 1 x Optical Fiber Out[LC female] 1 x IR OUT [3.5mm Stereo Mini-jack]

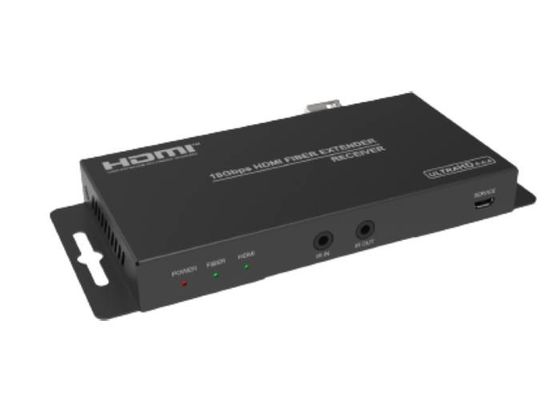

Receiver	Input: 1 x Optical Fiber In[LC female] 1 x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB,Update port] Output: 1 x HDMI OUT [Type A 19-pin female] 1 x RS-232 [3.81mm Phoenix connector] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x AUDIO OUT [3.5mm Stereo Mini-jack]
