Product Details:
|
| Resolution: | Full HD 1920*1200@60Hz | Support: | KVM |
|---|---|---|---|
| ESD Protection Circuit Inside: | Support | Power Supply Unit: | 12V/1A |
| Ports: | RS232 Port R(receive) T(transmit) G(ground) | Fiber Band Width: | 3Gbps |

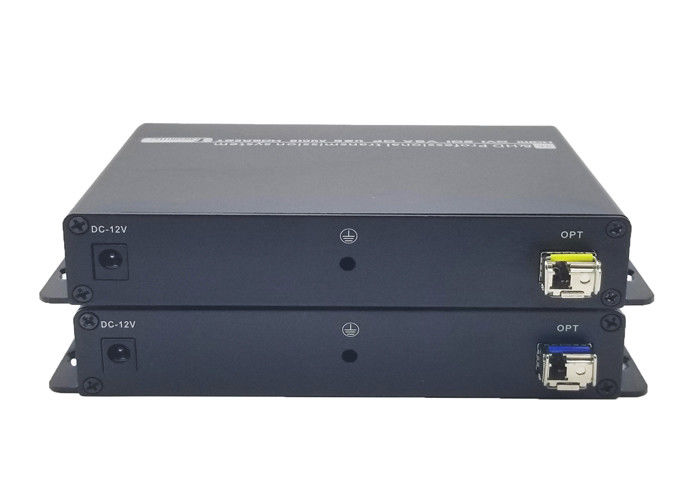

| Prodcut Name: | HDMI Video Over Fiber Optic Extender | ||
| Highlight: | 1920x1200 HDMI Video Extender,3Gbps HDMI Video Extender,RS232 Port HD Video Extender |
||
Product Overview
HDMI Video Over Fiber Optic Extender adopts the uncompressed digital HD video and high-speed digital optical
fiber transmission technology advanced, It can transfer signal source(computer signal source,HDMI signal source
high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal
completed and stable.
Main features
1.Full digital, Uncompressed HD optical fiber transmission.
2. Support Full HD 1920*1200@60Hz.
3. The attenuation of optical module SFP low to -3db.
4. 1 channel analog audio(3.5mm).
5. Support HDMI 1.3b Protocal.
6. Support KVM.
7. Automatic identification and configure display mode
8. Automatic equalization inside, stable and clear graphics.
9. ESD protection circuit inside, to ensure the ESD damage.
10.Easily to installation, plug and play, no need to set up.
11.HDMI Video Over Fiber Optic Extender
Specification:
| Temperature | -5°C to +75°C |
| Humidity | 5 to 90 % RH (no condensation) |
| The signal of Input and output | HDMI |
| Protocal | HDMI1.3b,HDCP1.2 |
| Pixel band width | 165MHz |
| Video format | Support 1920*1200 and all format below |
| The signa of Audio input and output | 3.5MM Audio |
| Audio format | 44.1K,48K,96K,176K,192K |
| RS232 port | 3 ports industrial terminal |
| RS232 Baud rate | Support 115200 and all below |
| RS 232 Data bits | 8 bits |
| KVM receiver port | A USB port |
| KVM transmitter port | B USB port |
| Fiber port | LC |
| Fiber module | SFP single mode |
| Fiber wavelength | 1550/1310nm |
| Fiber band width | 3Gbps |
| The Maximum transmission distance of HDMI and Audio |
10KM 20KM 40KM 60KM |
| Input voltage | DC 12V,inside + outside - |
| Power consumption |
HDMI receiver 4W HDMI transmitter 4W |
| Device size | 109.5*152*29.3mm(length*width*height) |
| Packing box size | 328*273*90mm(length*width*height) |
| Weight | 1500g |
| Product type | HDMI Video Over Fiber Optic Extender |
Application Graphics
HDMI Video Over Fiber Optic Extender
