Product Details:
|
| Audio/Video Input: | HDMI , RCA Audio, USB | Audio/Video Output: | Ten Female HDMI Connectors |
|---|---|---|---|
| Control Methods: | IR Remote Control | Power: | 12 VDC, 2A |
| Dimensions: | 420mm(L)x243mm(W)x60mm(H) | Warranty: | Two Years |
| Product Name: | FCC CE Rohs 1 IN 9 OUT Video Matrix 3x3 TV Video Wall Controller With 9 Screens | ||
| Highlight: | 12VDC 2A HDMI Video Wall Controller,FCC IR HDMI Video Wall Controller,12VDC 2A HDMI Matrix Controller |
||
FCC CE Rohs 1 IN 9 OUT Video Matrix 3x3 TV Video Wall Controller With 9 Screens
Features:
1.Audio/Video Input
*** One female HDMI connector.
*** One female 15-pin HD connector.
*** One RCA composite video jack.
*** Supports PAL, NTSC, SECAM.
*** One 3.5 mm stereo audio jack.
*** One set (R&L) RCA audio jacks.
*** One female USB Type A connector.
*** Supported file types: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture decode and MPEG1/2, MP3 audio decode
2.Audio/Video Output
*** Ten female HDMI connectors.
*** One female HDMI Loop Out connector for cascading.
*** Supported video output resolutions: 1024x768, 720p, 1360x768, 1080p.
*** Input resolutions will be converted to one of these user-selectable resolutions.
*** Supports embedded digital audio through HDMI compatible TVs or audio receivers.
*** One 3.5 mm stereo audio jack.
*** One digital coaxial (RCA) audio jack.
3.Environmental
*** Operating temperature: 32 to 104°F (0 to 40°C).
*** Storage temperature: -4 to 140°F (-20 to 60°C).
*** Operating/storage relative humidity: 20 to 90% non-condensing RH. Regulatory Approvals.
*** CE, FCC, RoHS
4.Warranty
*** Two years for FCC CE Rohs 1 IN 9 OUT Matrix HDMI LCD Video Wall Controller With 12VDC , 2A , IR.
*** Compatible Winlink Products.
*** Combine Winlink’s extenders, switches, splitters and cables for complex applications.
*** Low-Cost HDMI Extender via One SC Single-mode Fiber Optic Cable (ST--SC-ULC).
Specifications of FCC CE Rohs 1 IN 9 OUT Video Matrix 3x3 TV Video Wall Controller With 9 Screens:
| Name | Specification |
| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,420mm(L)x243mm(W)x60mm(H). |
| Weight(1U) | 2.5KG |

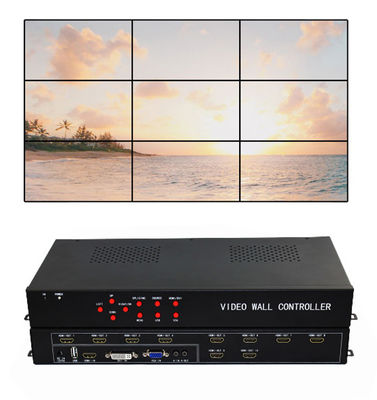

FCC CE Rohs 1 IN 9 OUT Video Matrix 3x3 TV Video Wall Controller With 9 Screens
That Allow Users To Send HD Video To Any Screen On A Video Wall:
