1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

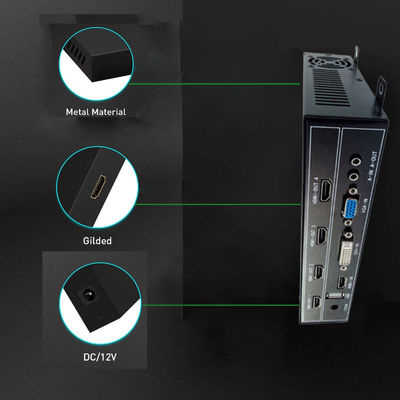

Large Image : 1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE ,FCC ,RoHs
Model Number:	WL-TW14

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton boxing ,standard export package for 1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor
Delivery Time:	2-3 days
Payment Terms:	T/T,Western Union, MoneyGram,
Supply Ability:	1000 sets per week

Contact Now

1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

Description

Place Of Origin::	Guangdong, China	Input::	1 X HDMI Type A Female
Output::	4 X HDMI Type A Female	Resolution::	1080P@60Hz
Color::	Black	Material::	Mental Housing
Product Name:	1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor
Highlight:	1080P 2x2 Video Wall Controller , DC12V 3A 2x2 Video Wall Controller , 1080P 1x4 Video Wall Processor

1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

Features:

1. Multiple splicing modes with 4 HDMI outputs (2×2,1×4,4×1,1×2, 2×1, 3×1, 1×3);

2. Multiple video input signal selection with 1x HDMI,DVI,VGA,USB;

3. Support mirror function5.Support edage mask function;

4. Controlled by buttons, remote controller and RS232;

5. G.W:1.5KG,N.W :2.0KG for 1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor,DC 12V3A;

Specifications:

Item	Specification
HDMI input
Interface	HDMI(support HDCP1.3 and DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
DVI input
Interface	DVI(support DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
VGA input
Interface	DB15
Resolution	800600 to 19201080@60Hz
AV input
Interface	RCA
Identification	Auto
Standard	PAL,NTSC
USB
Video	RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P
Audio	MP3,WMA,FLAC and so on
Picture	JPG,BMP,PNG
Text	TXT
Audio in	Fit for VGA video
Audio output	Fit for output video
HDMI output	*1024768@60hz,720P@60Hz,1080P@60Hz**
Controller	Remote, button key, RS232 serial port
Power	Input:DC 12V3A
Dimension (package)	4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H)
Weight	4 port: 1.6 Kg 5~10 port: 2.5 KG

Product name

1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

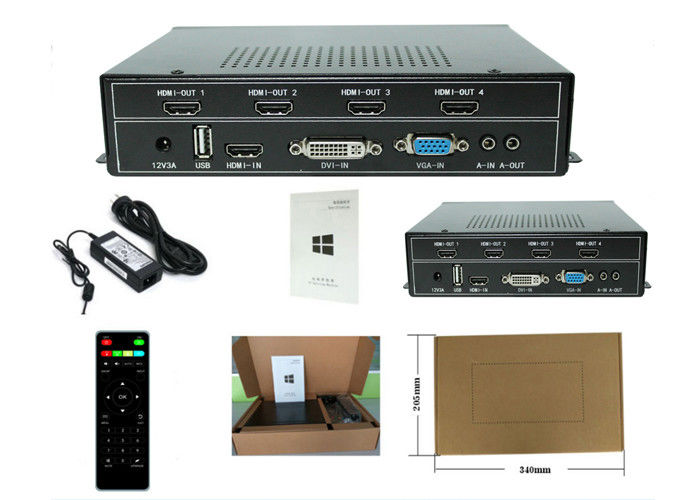

The Using diagram of the 1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor

1080P 2x2 HDMI Video Wall Controller 1x4 HDMI Video Wall Processor 0
