Product Details:
|
| Input:: | Active Balanced, 18K Omega | Max. Input Level:: | +20dBu |
|---|---|---|---|
| Input Gain Range:: | -40dB To +12dB | Output:: | Active Balanced, 100Komega |
| Output Gain Range:: | -40dB To +12dB | Product Name: | 8 Input 4 Output DSP Audio Speaker Management Digital Sound Processor |
| Highlight: | 12VDC 6 Channel Video Switcher,2 USB2.0 6 Channel Video Switcher,12VDC Portable Video Switcher |
||

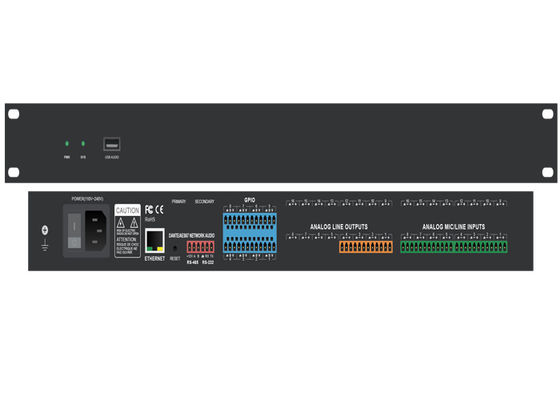

Winlink WNLP84 8 input 4 output DSP Audio speaker management digital sound processor
Descriptions:
DSP Controller is a Windows-based application, which is used to conduct configuration and control on DSP hardware.
DSP Controller has 16 built-in presets, and the modules and sequences for each preset can be flexibly designed in
accordance with the designer's requirements. After the design is finished, 8 input 4 output DSP Audio speaker
management digital sound processor can be saved for future use. The sequences and parameters of DSP
Controller's built-in processing modules accord to most of the application scenarios without any change.
8 input 4 output DSP Audio speaker management digital sound processor.
Specifications:
|
Item
|
Specifications
|
|
Max Input Level
|
18dBu
|
|
Max Output Level
|
18dBu
|
|
Default Output Level
|
0dBu
|
|
THD+N
|
<0.003%；1kHz@+4dBu
<0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
|
Frequency Response
|
20Hz-20kHz, +/-0.2dB
|
|
In To Out dynamic range
|
110dB (Unrecorded right)
|
|
S/N
|
-110dB (Unrecorded right)
|
|
ADC Dynamic Range
|
CS5361 114dB
|
|
DAC Dynamic Range
|
CS4382A 114dB
|
|
DSP
|
400Mhzfloating - point SHARC ADSP-21488
|
|
Sampling Frequency
|
48K
|
|
QE
|
24Bit
|
|
Storage
|
32
|
|
Control Mode
|
100M Ethernet
|
|
Language
|
English
|
|
Noise Gate
|
Yes
|
|
Feedback
|
Yes
|
|
Signal Generator
|
Yes
|
|
Pressure Limiter
|
Independent 12 channel
|
|
Delay
|
Output 1-4 218ms
Output 5-8 148ms |
|
PEQ
Low Shelf High Shelf |
Independent 16-band
|
|
High Pass/Low Pass
Bessel Butterworth Link-Riley |
Independent 12 channel
-6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
| Product name | 8 input 4 output DSP Audio speaker management digital sound processor |
3.Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.
8 input 4 output DSP Audio speaker management digital sound processor.
