HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch

HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch
HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch
HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch

Large Image :  HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-U4Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package for IP-Based KVM Switch
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch

Description
The Host X1: Hanging Ear X2 Screw (securing Mounting Ears) X4: Machine Foot X4
The Instructions X1: Certificate Of Quality & Warranty CardX1 Phoenix Seat X4: Supported
Name: HD Multi-screen KVM Decoder All-in-one Machine IP-Based KVM Switch
Highlight:

RJ45 LED Wall Processor

,

RS232 LED Wall Processor

,

RS232 LED Wall controller

HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch



Hd multi-picture KVM all-in-one machine is a full use of video compression processing technology,

network technology, visualization technology, centralized control and other advanced technology,

to build IP network as the link, set video splicing processing, KVM collaborative management,

audio processing, centralized control and other functions and coding and decoding in one equipment.

It has the characteristics of distributed, networked, visual, and decentralized server. The product operation

fully considers the key performance of synchronization, real-time, compatibility, breathing effect and

color reduction in video processing. HDMI interface supports up to 3840x2160@30Hz input and output,

multi-screen splicing screen, I / O, IR, RS232 external control, providing cost reduction, easy wiring,

visual control, decentralized control, for a variety of HD or 1080P video application scenarios.

It can be widely used in the conference center, exhibition center, command center, transportation center, etc.

2. IP-Based KVM Switch functional characteristics

  • Integrated encoder decoder, dial code transformation mode;
  • support H.264 And H.265 Codec protocol;
  • Really distributed, no server, no other auxiliary equipment, completely decentralized;
  • Good real-time, good experience, KVM seat video output and host local average latency of 60ms;
  • Operation visualization, KVM and client visualization operations;
  • The HDMI interface supports up to 3840x2160@30Hz input and output;
  • Sync performance is better, support LCD, LED, DLP splicing screen;
  • Support multi-channel decoding, single screen 16 screen, roaming, superposition;
  • Support the common custom window layout preset;
  • Support for pre-layout and release;
  • Support subtitle, scene, scene polling;
  • Support for interface personalized customization.
  • IP-Based KVM Switch

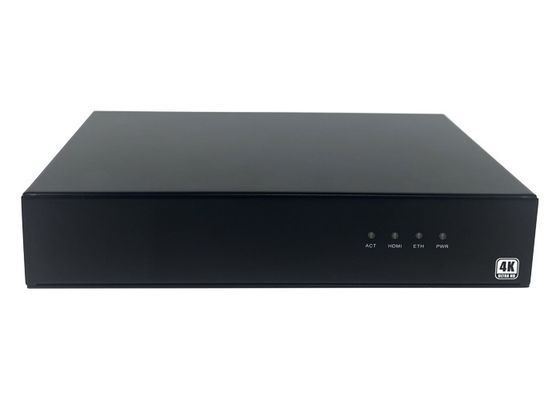

HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch 0



order number name description
1 ACT pilot lamp
  • CPU and temperature limit alarm lamp
HDMI pilot lamp
  • The HDMI IN port in the back panel is bright after the signal input
  • Or the light is when the HDMI OUT port of the back panel is connected to the output end.
ETH, pilot lamp
  • The back panel network port is connected to the gigabit network after the light
PWR, pilot lamp
  • Light when POE or 12V

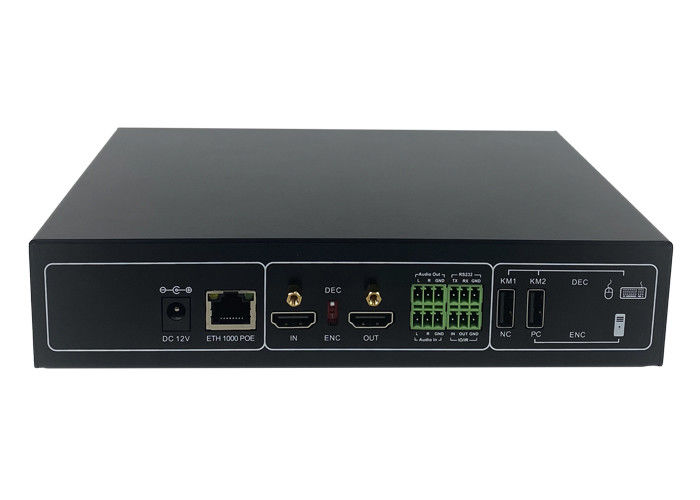

HD multi-screen KVM decoder all-in-one machine IP-Based KVM Switch 1



order number name description
2 DC 12V Power supply interface
  • 12V DC power supply master head interface, used to connect DC 5.5 * 2.1 specification power supply head, and network POE power supply mutual backup.
3 E TH 1000 POE
  • Gigabit network interface, support POE power supply, gigabit switch, and network POE power supply mutual backup. The factory default IP is 192.168. *.*
4

HDMI IN

Video input interface
  • Used for the HDMI video input when used as an input node.
5 Dial switch
  • Used for encoding input and decoding output mode switching
  • ENC code, as the input node, the signal source
  • It is DEC decoding, as the output node, KVM seat node and IPC forwarding node
6

HDMI OUT

Video output interface
  • For the input signal ring out, when used as an input node
  • Use to connect the HDMI output side as an output node
7 Audio O ut Audio output interface
  • 3.5mm 3 Pin interface, for analog audio output interface, L is the left channel, R is the right channel, GND is the ground
8 Audio I n Audio input interface
  • 3.5mm 3 Pin analog audio input interface, L is the left channel, R is the right channel, GND is the ground
9 R S232 Interface
  • R S232 Serial port 3 Pin interface, two-way function and network side direct transmission, TX for sending, RX for receiving, GND for the ground.
10 The IR / IO interface
  • IR / IO multiplexing 3pin interface, IR and IO functions are either option. The IR can receive or send only. IO supports receiving or sending. IO has two ways.
11 K M1 /NC
  • This interface is invalid NC when entering the (ENC) mode.
  • When the output (DEC) KVM mode, this interface can connect the mouse or keyboard, ordinary output node, the interface does not work.
12 K M2 /PC
  • When entering the (ENC) mode, this interface PC receives the USB interface of the control signal source host. For transmitting the mouse and keyboard signals.
  • When the output (DEC) KVM mode, this interface can be connected to the mouse or keyboard, the ordinary output node, the interface does not work.
