Product Details:
|
| Splicing Output: | Splicing Output Resolutions Can Be Up To 15360×600@60Hz (horizontal Splicing) Or 960×6144@60Hz (vertical Splicing) Or 4096×1536@60Hz (cross Splicing). And The Output Resolution Can Be Adjusted Arbitrarily Within This Range. | Four-Window Display: | · Render 4 Or Less Images On The Screen At The Same Time, These Images Can Be From The Same Or Different Input Signals. |
|---|---|---|---|
| Ethernet Monitoring: | Via Ethernet, Users Can Monitor And Preview Through The KYSTAR Software In Real Time | Size (mm): | 66(H)×432(L)×256(D) |
| Weight (Kg): | 4 | Warranty: | 1 Year |
| Highlight: | 4Windows LED Video Wall Controller,HDMI1.3 LED Video Wall Controller,HDMI1.3 LED Controller Video Processor |
||

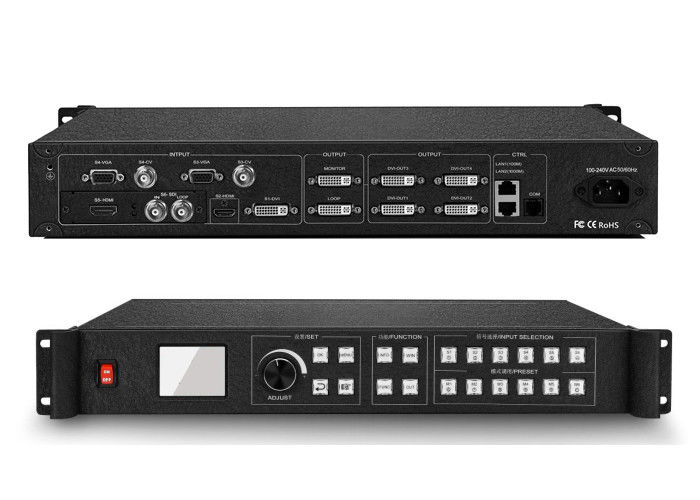

4 Windows LED Video Wall Controller With Local Preview Ethernet Monitoring
Four Windows Processor with Local Monitoring And Preview and Ethernet monitoring & control in real time
Product description :
1. Output pixels up to 15360 horizontally or 6144 vertically;
2. Display four windows of images on a single screen simultaneously or control four different LED screens;
3. Support HDMI , DVI , VGA , SDI , CVBS , IP inputs;
4. Six windows preview and output monitoring;
5. Ethernet monitoring and control in real time;
6. Editable text and image overlay;
7. Window or mode transition effects including dissolves, wipes, and cuts;
8. Brightness control of each input;
9. Transparency adjusting and edge feathering;
10. Hot backup of input signals;
Specification:
| Video Input | |||||
| Type | Qty. | Description | |||
| DVI-D (24+1) | 1 |
· 1920×1200@60Hz max., downward compatibility · Compatible with HDMI1.3 and inferior version, EDID version 1.3 |
|||
| HDMI (TYPE A) | 1 |
· 1920×1200@60Hz max., downward compatibility · Compatible with HDMI1.3 and inferior version, EDID version 1.3 |
|||
| VGA (HD-15) | 2 | · 1920×1200@60Hz (UXGA) max., downward compatibility | |||
| Composite Video (BNC) | 2 | ·NTSC/PAL adaptive, support 3D comb filter | |||
| Extension Input | 1~2 |
· Can be configured as DVI, VGA, SDI, HDMI1.3/1.4, Dual Link DVI, IP and CVBS · Default configuration:2 DVI-D inputs |
|||
| Video Output | |||||
| Type | Qty. | Description | |||
| DVI-D (24+1) | 6 |
· Support common output resolutions like: 2048×1152@60Hz and 1920×1080@60Hz · Support user-define output resolutions like3840×660@60Hz · Compatible with HDMI1.3 and inferior version · 4 as programming outputs, 1 as monitor & preview output, 1 as loop |
|||
| Function Description | |||||
| Splicing Output | · Splicing output resolutions can be up to 15360×600@60Hz (horizontal splicing) or 960×6144@60Hz (vertical splicing) or 4096×1536@60Hz (cross splicing). And the output resolution can be adjusted arbitrarily within this range. | ||||
| Four-Window Display |
· Render 4 or less images on the screen at the same time, these images can be from the same or different input signals. · Each image can be freely zoomed and arranged. Images can overlap each other. |
||||
| Ethernet Monitoring | · Via Ethernet, users can monitor and preview through the KYSTAR software in real time | ||||
| Hot Backup | · Users can set the priority of the input signal. When current signal fails, the system will automatically output next priority signal. | ||||
| Image-Text Overlay | · Text or pictures can be overlaid on the image through KYSTAR software | ||||
| Seamless Transition With Effects | · In case of signal or preset transition, users can choose different transition effects, including: fade in/out, cut, vertical or horizontal comb, round cut-in or cut-out, diamond cut-in or cut-out and cross of every side | ||||
| Local monitoring and preview |
· Users can preview input signals through the monitor or monitor current output image: 1. Monitor the outputs, showing the same image with the Display. 2. Preview the inputs, showing 6 inputs images in the same time. 3. Monitor and preview in the same time. |
||||
| Transparency adjusting and edge feathering | In order to integrate the different layers of image well, U4 can change the transparency of each windows or achieve edge feathering effect. | ||||
| Preset and Calling | · Users can save up to 64 presets of parameters for quick calling. | ||||
| Independent brightness control | U4 can adjust the brightness of each inputs independently so that the user can improve the quality of the specific image without influence to the others. | ||||
| Multi-Cascade | · Tow or more device can work together to drive the huger screen. | ||||
| Freeze | · U4 can freeze the displaying video. | ||||
| Others | |||||
| PC Control Mode | RS232/RJ45 Ethernet | Size (mm) | 66(H)×432(L)×256(D) | ||
| Weight (Kg) | 4 | Input Power | 100 - 240 VAC, 47- 63 Hz, ≤2A | ||
| Work Environment | Temp:0-40℃; Humd:0-95% | Warranty | 1 year | ||
