Product Details:
|
| Software Control: | RS232/USB | Weight(Kg): | 3.5 |
|---|---|---|---|
| Work Environment: | Temperature:0-40℃；humidity:0-95% | Dimension(mm): | 66(H)×432(L)×225(W) |
| Input Power: | 100-240VAC，47-63Hz，≤2A | Warranty Period: | 1 Year |
| Highlight: | 2 DVI Output LED Wall Processor,1U Casing LED Wall Processor,66mm LED Video Controller |
||

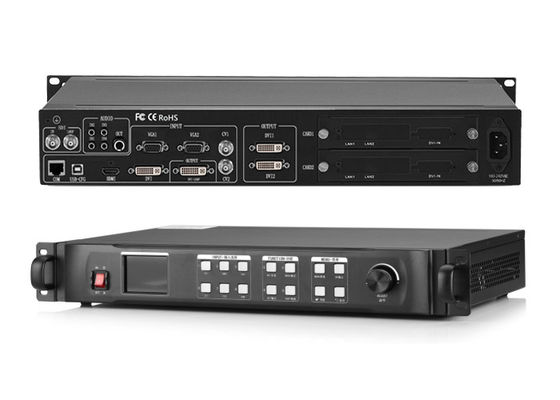

1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
WL-U1 1xDVI ,1XHDMI,1XVGA,2XBNC input 2xDVI output LED wall processor with 1U casing
Product description:
Humanized panel design
With color panel and two-way regulation knob, U1 brings great convenience to users by its friendly user interface.
Multiple HD/SD signal inputs:
U1 supports 5-channel HD/SD signal, including
DVI*1,VGA*1,HDMI*1,CVBS*2.
What’s more,KS600 has 2pcs sending card built-in ability.
The drawer type design is convenient for users to install cards.
Product features:
Specifications:
| Video Input | ||||
| Type | No. | Description | ||
| DVI-D(24+1) | 1 |
· Max resolution supported is 1920*1200@60Hz ,downward compatibility. · Compatible with HDMI1.3 and lower version, EDID version 1.3 |
||
| HDMI(TYPE A) | 1 |
· Max resolution supported is 1920*1200@60Hz, downward compatibility · Compatible with HDMI1.3 and lower version, EDID version 1.3 |
||
| VGA (HD-15) | 1 |
· Max resolution supported is 1920*1200@60Hz ,downward compatibility. · EDID version 1.3 . Signal level:R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω；black level:300mV Sync-tip:0V |
||
| CVBS(BNC) | 2 |
· NTSC/PAL adaptive Signal level :1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω |
||
| Video output | ||||
| Type | No. | Description | ||
| DVI-D(24+1) | 2 |
· Max resolution supported is 1920*1300@60Hz,downward is compatible · Compatible with HDMI1.3 and lower version,EDID version 1.3 . User-defined resolution supported, such as 1536*1536@60Hz,1200*1800@60Hz |
||
| Control interface | ||||
| Type | No | Description | ||
| RS232(RJ 11) | 1 | Baud rate 9600, RJ 11 to RS232 cable provided. | ||
| Features | ||||
| Fade in/fade out | Every channel supports fade in/out switch. | |||
| Humanized interface | U1 has color LCD panel, numerical buttons and adjustment knob and supports wizard setting. | |||
| Scheduled task | Make timing operation to complete automatic management via KYSTR software | |||
| Others | ||||
| Software control | RS232/USB | Dimension(mm) | 66(H)×432(L)×225(W) | |
| Weight(Kg) | 3.5 | Input power | 100-240VAC,47-63Hz,≤2A | |
| Work environment | Temperature:0-40℃；humidity:0-95% | Warranty period | 1 year | |

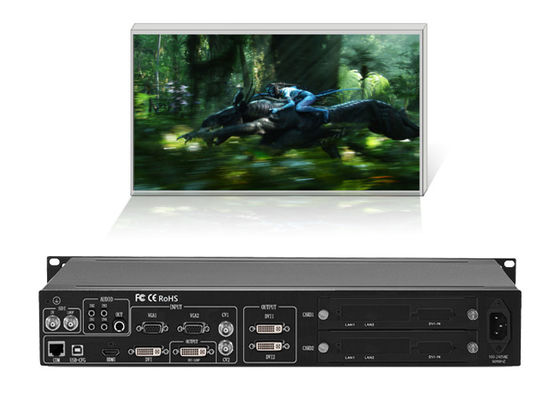

Free zoom in/out display:
