18Gbps HD Video Extender

18Gbps HD Video Extender
18Gbps HD Video Extender 18Gbps HD Video Extender 18Gbps HD Video Extender

Large Image :  18Gbps HD Video Extender

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-HD20F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pairs
Price: Negotiable
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pairs per week

18Gbps HD Video Extender

Description
HDMI Compliance: HDMI 2.0b HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps Transmission Distance: Up To 3300 Feet/1000 Meters Over Single-mode Fiber Cable Up To 1000 Feet/300 Meters Over Multi-mode Fiber Cable
RS-232 Baud Rate: 4800-115200bps
Highlight:

18Gbps HD Video Extender

,

HDCP 2.2 HD Video Extender

,

18Gbps Optical Fiber Extender

18Gbps HD Video Extender



18Gbps HDMI over Optical Fiber Extender with Audio Extracting



1. Introduction:

This HDMI Extender can extend HDMI signal up to 3300 feet/1000 meters (over single-mode fiber cable) or 1000 feet/300 meters (over multi-mode fiber cable). Video resolution is up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embeding and EDID managment function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.



2. Features:

1. HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant

2. Support 18Gbps video bandwidth

3. Video resolution up to 4k2k@50/60Hz 4:4:4

4. HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True

HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio,

DSD

5. Transmission distance up to 3300 feet/1000 meters (over single-mode

fiber cable) or 1000 feet/300 meters (over multi-mode fiber cable) (50/

125um/OM3)

6. Support bidirectional IR control, RS-232 pass-through and EDID

management for simple and convenient control

7.Transmitter supports loop output (sharing local HD video and audio) and

audio embeding function

8. Receiver supports audio extracting output function

9. Compact design for easy and flexible installation



3. Package Contents:

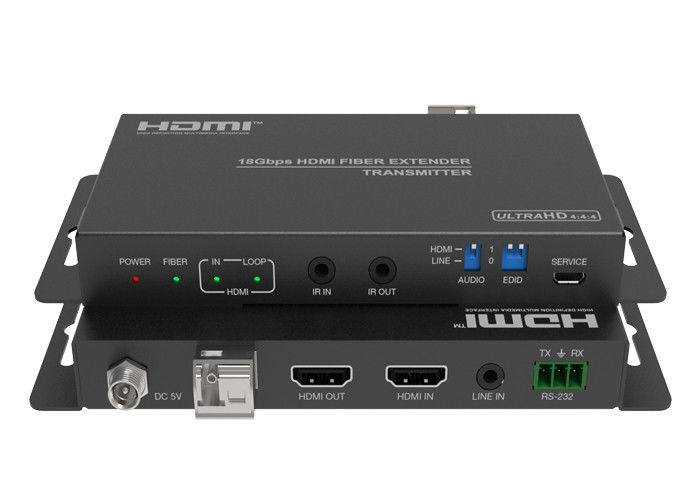

① 1× 18Gbps HDMI over Optical Fiber Extender (Transmitter)

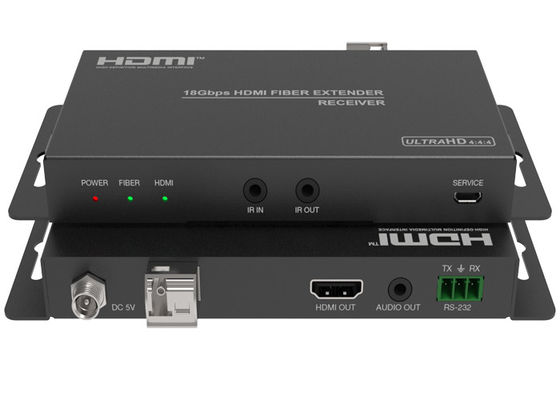

② 1× 18Gbps HDMI over Optical Fiber Extender (Receiver)

③ 1× IR Blaster cable (1.5 meters)

④ 1× IR Receiver cable (1.5 meters)

⑤ 2× 5V/1A Power adapter

⑥ 2× 3-pin 3.81mm Phoenix connector

⑦ 1× User Manual



4. Specifications:

18Gbps HD Video Extender 0

18Gbps HD Video Extender 1

5. Application Example

18Gbps HD Video Extender 2
