Product Details:
|
| Power Supply: | 5V 2A DC | Operation Temperature: | 32~131°F [0~55°C] |
|---|---|---|---|
| Storage Temperature: | -4~185°F [-20~85°C] | Relative Humidity: | 5~95% RH [no Condensation] |
| Product Name: | MINI 1920*1200 4 Cores DVI Fiber Optic Multimode Extender | Warranty Time: | 1 Year |
| High Light: | DVI Fiber Optic Multimode Extender,500m Multimode Extender,1640 ft DVI Video Extender |
||

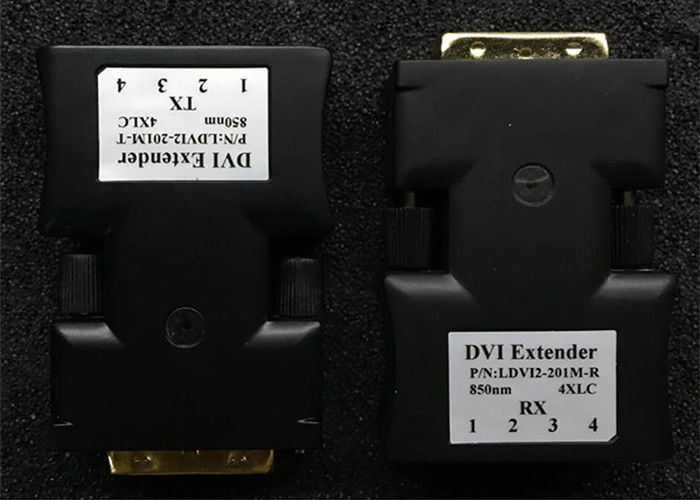

MINI 1920*1200 4 Cores DVI Fiber Optic Multimode Extender
Description:
Fiber optic transmitter is used to solve DVI image long-distance or ultra-long-distance high-speed transmission equipment.
The problems of data security and anti-magnetic interference are solved. DVI optical transmitter system includes a signal
transmitter (WL-FD04-T) and a receiver (WL-FD04-TR), which transmits R.G.B signal and data clock signal through four
multimode optical fibers.
Features:
Specs:
| Video | |
| DVI Compliance | DVI-D |
| Distance | 1640ft [500m] |
| Max Resolution | 1920*1200@60Hz |
| Connectors | |
| TX Connectors | (1) DVI in, (4)LC |
| RX Connectors | (1) DVI out, (4) LC |
| Mechanical | |
| Dimensions | 59 x 39 x 15mm(L/W/H) |
| Weight | 0.066lbs [30g] |
| Power | |
| Power Supply | 5V 2A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
| Product name | MINI 1920*1200 4 Cores DVI Fiber Optic Multimode Extender |
Application of the MINI 1920*1200 4 Cores DVI Fiber Optic Multimode Extender :
