Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency

Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency
Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency

Large Image :  Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency

Product Details:
Place of Origin: China Mainland
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-HBT70
Payment & Shipping Terms:
Minimum Order Quantity: 1 pairs
Price: Negotiable
Packaging Details: carton box and standard export package for Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pairs per week
Contact Now

Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency

Description
Frequency Bandwidth: 2.97Gbps HDMI Transmitter Input/Output Ports: 1x HDMI Female Port/1 X CAT6,1x IR Transmitter/1x IR Receiver
HDMI Receiver Input/Output Ports: 1 X HDMI Female Port/1 X CAT6,1x IR Transmitter/1x IR Receiver Power Supply: DC 12V 2.5A
Dimensions (mm): 65(W) X 100 (D) X 25 (H) Product Name: Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency
Highlight:

70M HD Video Extender

,

HDBaseT HD Video Extender

,

70M HDMI HDBaseT Extender

Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency



Introduction

The Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency is a tool for extending your HDMI signal over

long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Internet cable.



Specifications

Frequency Bandwidth 2.97Gbps
HDMI Transmitter Input/Output Ports 1x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver
HDMI Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6,1x IR Transmitter/1x IR Receiver
Power Supply DC 12V 2.5A
ESD Protection Human Body Model: ± 8kV (air-gap discharge);± 4kV (contact discharge)
Dimensions (mm) 65(W) X 100 (D) X 25 (H)
Weight 200g x 2
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 20W
Product name Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency

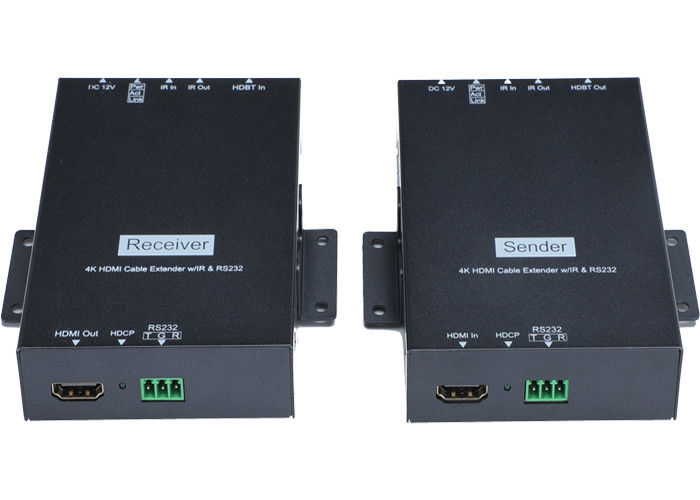

Connection picture:

Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency 0

Hdbt Hdmi Over Cat5 Hdbaset Over Ip 4k Extender Without Any Latency
