Product Details:
|
| Modulation Mode: | OFDM 16QAM | Transmission Power: | Maximum 15dBm |
|---|---|---|---|
| Occupied Bandwidth: | 20/40MHz | Temperature Range: | 0-40℃(working Temperature); -20-60℃(storage Temperature) |
| RECEIVER: | RECEIVER | Output Video Format: | SDI:3G, HD, And SD-SDI(Auto-Selected): HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25 /29.9/30/50/59.94/60; |
| Receiver Sensitivity: | -75dBm | ||
| High Light: | SDI Wireless Transmitter,150m HDMI Wireless Transmitter,150m Wireless Transmitter And Receiver |
||

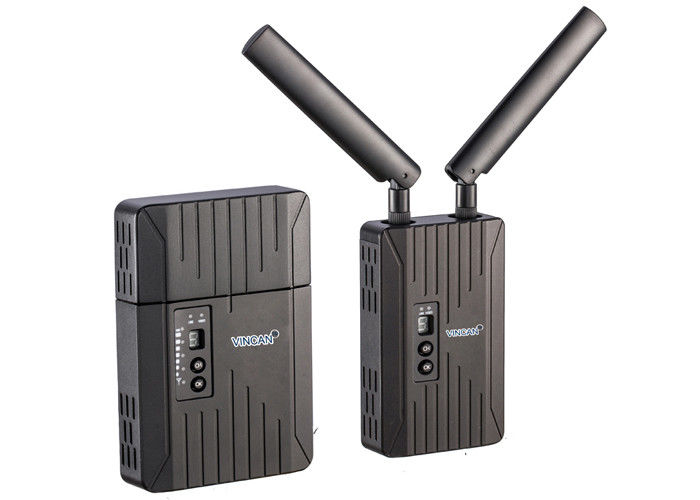

Zero Latency 150m WHDI HDMI 3G SDI Wireless Transmitter And Receiver
Zero latency , 150 meters WHDI HDMI & 3G-SDI wireless transmitter and receiver
Features:
1. Uses License-Free 5GHz ISM frequency band, maximum 4 frequency channels selection, coexist with WIFI.
2. Highest resolution 10 bits color depth 4:4:4, 1080p 60FPS DHMI and SD/HD/3G SDI input and output, HDMI SDI cross conversion is
supported.
3. Support wireless 10 bit HD video with no compression and no delay up to 300m(984ft).
4. Uncompromised picture quality with very low latency, <1ms.
5. Supports point to point, and point to multi- points network topology, one transmitter can be connected up to 4 receivers.
6.Support professional audio formats include Dolby True HD, DTS-master, etc.
7. AES-128 encryption with air interface HD video data stream.
8. Wide range power voltage input, compatible with most kinds of camera batteries.
Specification
|
|
|
/ |
|
SDI:3G, HD, |
|
|
|
|
|
|
and SD-SDI(Auto-Selected): |
|
||
|
|
|
|
|
|
||
|
Output Video Format |
|
|
|
HDMI: 525i, 625i, |
|
|
|
|
|
|
720p 50/59.94/60, |
|
||
|
|
|
|
|
|
||
|
|
|
|
|
1080i 50/59.94/60, 1080p23.98/24/25 |
|
|
|
|
|
|
|
/29.9/30/50/59.94/60; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Video Processing Color Depth |
|
Link-Yellow； VIDEO-Green |
|
RSSI-Blue(5 LEDs); Link-Yellow; |
|
|
|
|
|
VIDEO-Green |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency Band |
|
5.1-5.9GHz,configurable with China, |
|
5.1-5.9GHz,configurable with China, |
|
|
|
|
North America, Europe, etc |
|
North America, Europe, etc |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Modulation Mode |
|
OFDM 16QAM |
|
OFDM 16QAM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transmission Power |
|
Maximum 15dBm |
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Receiver Sensitivity |
|
/ |
|
-75dBm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Occupied Bandwidth |
|
20/40MHz |
|
20/40MHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature Range |
|
0-40℃(working temperature); |
|
0-40℃(working temperature); |
|
|
|
|
|
-20-60℃(storage temperature) |
|
-20-60℃(storage temperature) |
|
|
|
|
|
|
|
|
|
|
Transmitter Diagram
Receiver Diagram
|
①:Video input indicator |
⑥:Frequency display |
|
②:Link status indicator |
⑦:SDI output |
|
③:RSSI |
⑧:HDMI output |
|
④:Frequency confirm button |
⑨:Power on/off |
|
⑤:Frequency selection button |
⑩:DC input |
