Product Details:
|
| Video Bandwidth: | 2.25Gbps | Weight: | 1800g |
|---|---|---|---|
| Chassis Material: | Metal | Silkscreen Color: | Black |
| Relative Humidity: | 20~90% RH (non-condensing) | Power Consumption: | 24W |
| Highlight: | 2.25Gbps HDMI Multiviewer,24W HDMI Multiviewer,2.25Gbps 4k Multiviewer |
||

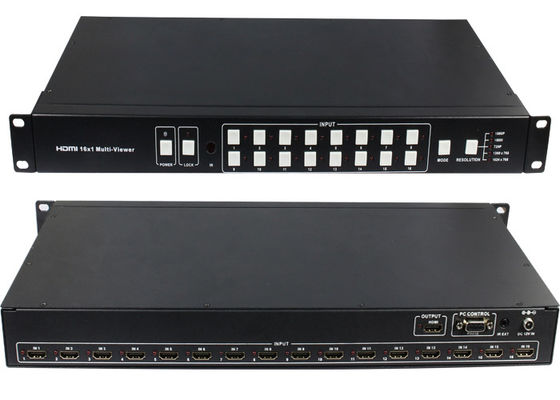

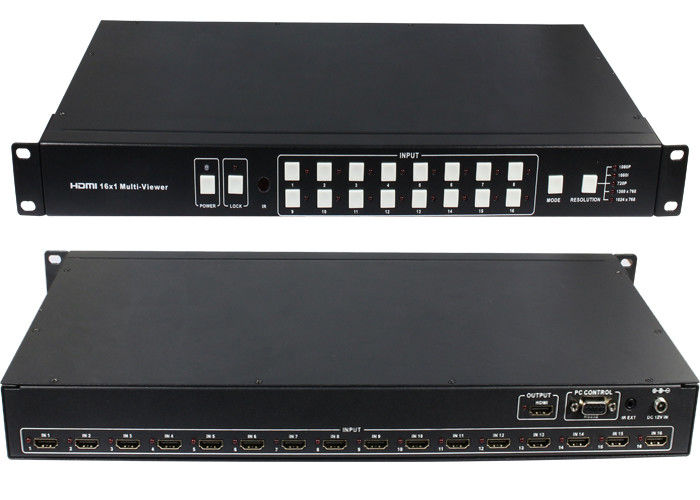

16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher
1. Introduction
The product can be controlled by various ways, through the front panel button control and RS-232 control etc.
16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher.
2. Features
3. Specifications
| Technical | |
| Video Bandwidth | 2.25Gbps |
| Input Ports | 16 × HDMI (Female type),1x RS232 |
| Output Ports | 1 × HDMI (Female type), |
| Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, | |
| Input Resolution | 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, |
| 1024x768@60,1280x720@60,1920x1080@60; | |
| Output Resolution | 1080p,1080i,720p,1024x768,1360x768 |
| ESD Protection | ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Power Supply | 12V/5A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 440mm(W)×200mm(D)×45 mm(H) |
| Weight | 1800g |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption | 24W |
| Product name | 16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher |
4. Application Example for 16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher .
