Product Details:
|
| Maximum Length: | Up To 100m | Power Consumption:: | 250mW (max) |
|---|---|---|---|
| Plug And Play: | Support | Reduced EMI And RFI: | Compatible |
| EDID, CEC, HDCP (2.2), HDR (High Dynamic Range): | Support | Resolutions: | 4K@60Hz (color Space 4:4:4),and Deep Color |
| Connection Type: | USB 3.0 AM To USB 3.0 AF | ||
| High Light: | 60Hz USB 3.0 Fiber Optic Cable,4K USB 3.0 Fiber Optic Cable,100m USB 3.0 Optical Cable |
||

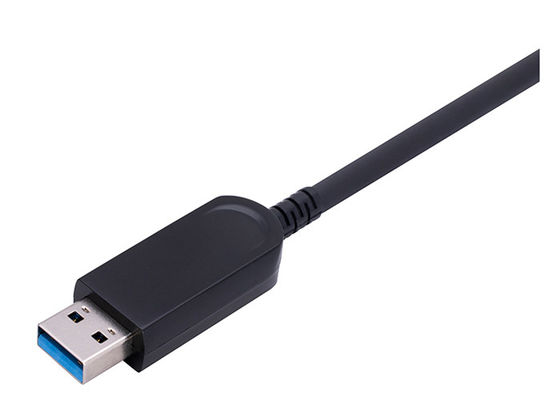

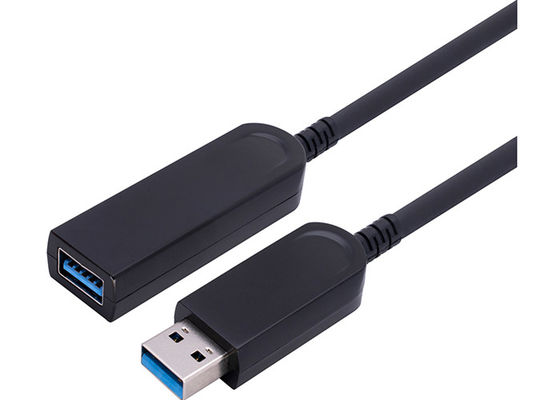

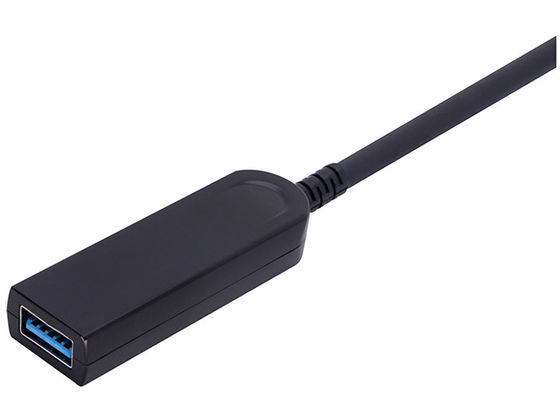

AM To AF 4K 60Hz USB 3.0 Fiber Optic Cable Maximum Length 100m
USB 3.0 AM to AF Active Optical Cable
Overview :
USB 3.0 Active Optical Cable (AOC) is a USB 3.0 electrical to optical conversion module. This product can translate signals
between USB 3.0 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a
traditional copper cable, but uses optical fiber “between the connectors”. AOC uses electrical to optical conversion on the
cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical
interface.USB3.0 AOC can extend the transmission distance of USB3.0 transmission to more than 100 meters .
AOC offer a quick solution to supply longer cable for USB3.0application.
Features:
◆ Extends USB 3.0 super speed devices up to 100 m;
◆ Supports all USB 3.0 device types: control, interrupt, bulk and isochronous at up to 5 Gbps;
◆ Operates with USB 3.0 super speed host controllers;
◆ Supports all major operating systems including Windows, Mac OS, and Linux;
◆ Number of devices can be increased using additional hubs;
◆ Power adapter at host is not required;
◆ Remote unit require standard power to USB3.0 AOC port;
◆ Ideal for a wire variety of USB devices, from printer, scanners, hard drives,and audio devices;
to touch screens, web cams, and game controllers.
