Product Details:
|
| Maximum Length: | Up To 100m | Power Consumption:: | 250mW (max) |
|---|---|---|---|
| Plug And Play: | Support | Reduced EMI And RFI: | Compatible |
| EDID, CEC, HDCP (2.2), HDR (High Dynamic Range): | Support | Resolutions: | 4K@60Hz (color Space 4:4:4),and Deep Color |
| Connection Type: | HDMI A To HDMI D | ||
| Highlight: | Armored HDMI 2.0 Optical Cable,Armored 4k HDMI Fiber Cable,200CU 4k HDMI Optic Cable |
||

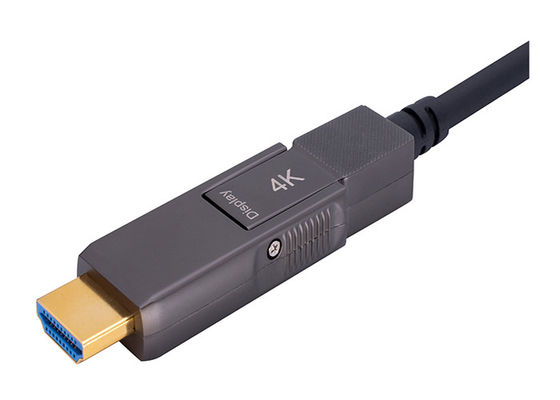

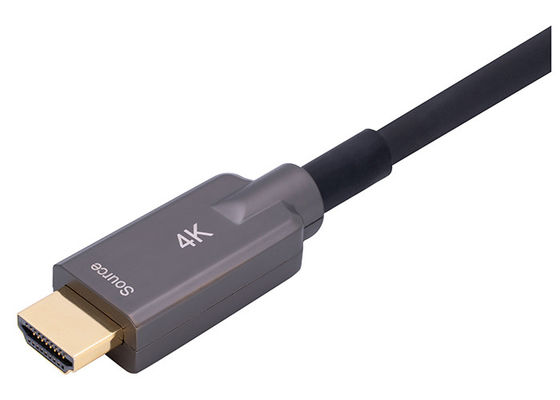

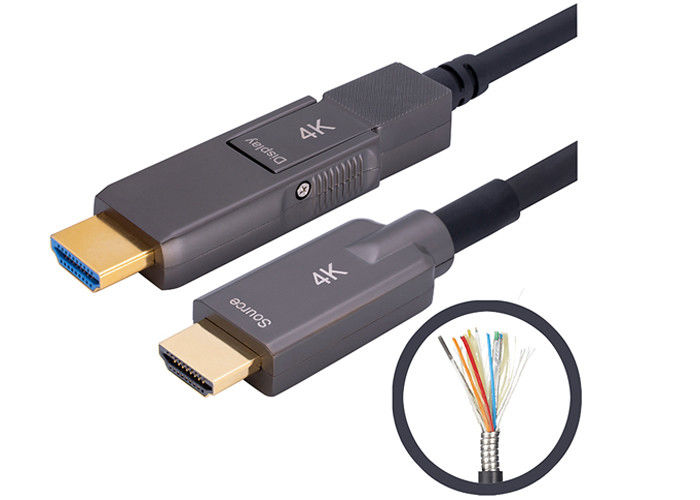

Armored HDMI 2.0 Optical Cable 200CU Stainless Steel Construction
Armored HDMI 2.0 A-D Active Fiber Optic Cable
Instruction :
Patent Detachable armored HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection
solution on the market. With 200CU stainless steel construction, strong enough . It supports HDMI Data Rate 6Gbps
per channel ,total 18Gbps with flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced
optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length,
plug and play. No external power required.
Features:
◆ 200CU stainless steel construction;
◆ Up to 100m Maximum Length.(Custom Length Available);
◆ Low Power Consumption: 250mW (max);
◆ Plug and Play;
◆ Compatible with HDMI 2.0 standard;
◆ Support HDCP1.4/2.2;
◆ Support ARC up to 100m;
◆ Self-detecting function for EDID information;
◆ No loss of signal – delivering crystal clear digital images instantly;
◆ Supports computer resolutions to 1080P and 4K2K(60P);
◆ Hybrid optical cable with fiber and copper wire;
◆ Crush Resistance: Long term100kg ; Short term 200kg.
Specification :
| 4K HDMI cable connects industrial and outdoor security and digital signage components |
| This high-speed HDMI cable securely connects HDMI-enabled laptops, tablets, Blu-ray players, game consoles, media servers or security cameras to 4K-ready HDTVs, HD monitors, projectors or home theater receivers. Because the cable uses optical fiber, it can transmit HDMI signals longer distances with no latency or loss. It also eliminates any EMI/RFI line noise that can interfere with your audio/video signal and disrupt the performance of your connected equipment. |
| Transmits crystal-clear 4K video with HDR and 4:4:4 color |
| HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. The cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as other current HDMI standards, including 3D, 48-bit Deep Color and Dolby 5.1-channel surround sound. |
| IP68-rated ends resist dust and water |
| Both HDMI connectors are protected by molded, dust-resistant, IP68-rated watertight hoods, shells and caps. The IP68 rating means the connectors can endure immersion in 1,5 meters of water for up to 60 minutes with no damage or decline in performance. |
Showing pictures :
