Product Details:
|
| VGA: | HD15 Interface And Link With 1 Audio Interface Of 3.5 Support 640*480/85HZ To 1920*1200/60HZ | HDMI: | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI Embed Audio |
|---|---|---|---|
| Video: | Automatic Identification The STetem Of NTSC、PAL And SECAM,link With 1 Audio Interface Of 3.5 | USB: | Standard Interface Of 2.0,can Insert U Disk,embed Audio; Support Video、image、MP3、TXT |
| Audio: | 3.5 Audio Interface,support Left And Right Channels And Stereo,AV Signal Switch STnchronously | Control Mode: | IR 、case Key |
| Power Supply: | AC: 100 To 240 V | Power: | 20W |
| Dimensions(1U): | 1U 19 Inch Standard Crate,442mm(L)*45mm(H)*242mm(W) | Weight(1U): | 2.5KG |
| Input Port: | 1 Channel HDMI Input Port | Output Port: | 9 Channels HDMI Output Ports |
| Product Name: | Multi- Miniotors And Multi-angel HDMI Video Wall Controller | ||
| Highlight: | Multi Angle HDMI Video Wall Controller,HD15 HDMI Video Wall Controller,HD15 TV Video Wall Controller |
||
Multi Monitors Multi Angle HDMI Video Wall Controller HD15 Interface
1. Highlights
Splits a 4K Signal to Four Displays
Plug-and-Play Default Settings
DisplayPort 1.4 Input
Four HDMI Outputs
RJ45 Gigabit Ethernet Port
3840 x 2160 / 7680 x 1080 Max Input
1920 x 1080 Max Output
Landscape, Portrait & Custom Layouts
Multiunit Support
On-Unit Controls for Setup & Playback
2. Features
Deploy your video wall or split a single signal with up to four displays using the Appliance from Matrix.
Designed for ease-of-use, this controller can be used in a plug-and-play fashion with the default 2 x 2 landscape orientation.
Or, users can choose from portrait or other asymmetrical or non-rectangular orientations as well as rotated, cloned,
or cropped feeds. Accepting resolutions up to 4K at 60 Hz via a DisplayPort 1.4 input,
the offers max output resolutions up to 1920 x 1080 via four HDMI outputs. Additionally,
an RJ45 port supports wired Gigabit Ethernet connectivity.
· Content Flexibility
Choose from a wide selection of content sources, including professional graphics cards and integrated GPUs,
video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
· Artistic Freedom
Design modern and artistic video wall layouts with free rein—each output can have its own resolution,
be independently rotated 90, 180, or 270 degrees, cropped, upscaled, downscaled, and positioned anywhere.
· Custom Configurations
Design any custom configuration or array with the intuitive Matrix Power Wall software, available separately.
· Don't Sweat the Bezel
Control and fine-tune bezels using presets to ensure seamless image displays.
3. Technical Parameters
|
Name |
Specification |
|
Input signal |
|
|
VGA |
HD15 interface and link with 1 audio interface of 3.5 |
|
HDMI |
HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
|
Video |
Automatic identification the STetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
|
USB |
Standard interface of 2.0,can insert U disk,embed audio; |
|
Output signal |
Up to 9 HDMI signal outputs can be customized with an output resolution of up to 1920x1080@60HZ. |
|
HDMI interface |
|
|
Audio |
3.5 Audio interface,support left and right channels and stereo,AV signal switch STnchronously |
|
others |
|
|
Control mode |
IR ,case key |
|
Power supply |
AC: 100 to 240 V |
|
Joint pattern |
Quad standard joint,single machine customize joint of 2 to 9 |
|
Power |
20W |
|

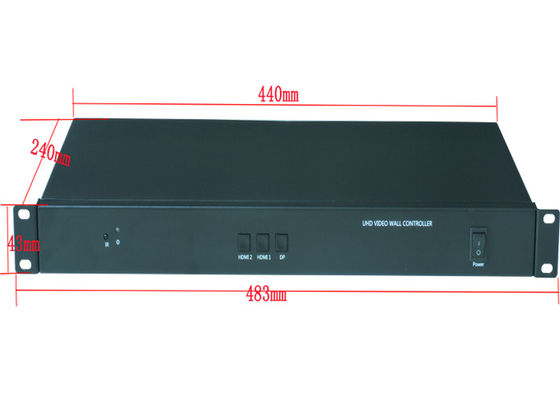

Case size |
|
|
Dimensions(1U) |
1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
|
Weight(1U) |
2.5KG |
4. Controlling configuration :
Multi Monitors Multi Angle HDMI Video Wall Controller HD15 Interface
