Product Details:
|
| VGA: | HD15 Interface And Link With 1 Audio Interface Of 3.5 Support 640*480/85HZ To 1920*1200/60HZ | HDMI: | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI Embed Audio |
|---|---|---|---|
| Video: | Automatic Identification The STetem Of NTSC、PAL And SECAM,link With 1 Audio Interface Of 3.5 | USB: | Standard Interface Of 2.0,can Insert U Disk,embed Audio; Support Video、image、MP3、TXT |
| Audio: | 3.5 Audio Interface,support Left And Right Channels And Stereo,AV Signal Switch STnchronously | Control Mode: | IR 、case Key |
| Power Supply: | AC: 100 To 240 V | Power: | 20W |
| Dimensions(1U): | 1U 19 Inch Standard Crate,442mm(L)*45mm(H)*242mm(W) | Weight(1U): | 2.5KG |
| Input Port: | 1 Channel HDMI Input Port | Output Port: | 9 Channels HDMI Output Ports |
| Highlight: | 20W HDMI Video Wall Controller,Length 442mm HDMI Video Wall Controller,20W HDMI Wall Controller |
||

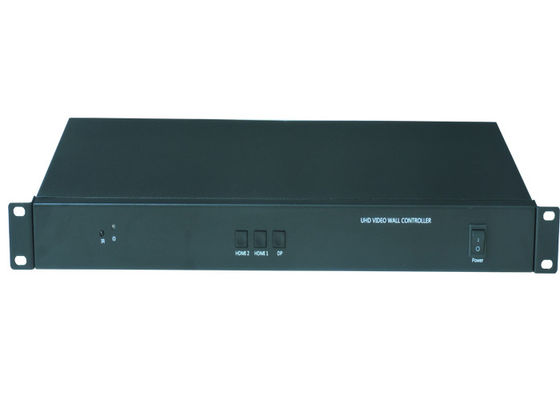

Multi Angle 20W HDMI Video Wall Controller With Artistic Freedom
I. the installation instructions
In order to save your precious time, this manual does not introduce common sense of common
use of electrical appliances,
please follow the common sense of common electrical appliances.Before using the device,
please read the operating instructions carefully so that you can quickly become familiar
with the commissioning and use of the device.
II. the installation steps

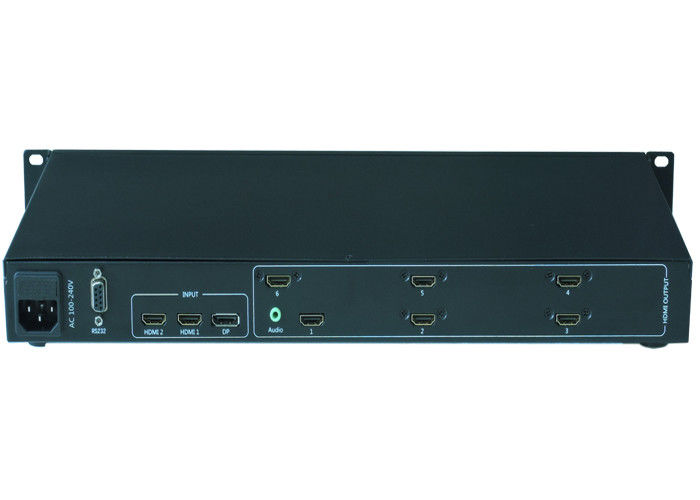

1. Connect the HDMI output of the splicing processor to the HDMI input port of the liquid crystal display unit,
and each display unit can be connected to any HDMI output port of the splicing processor;
2. Connect the signal source to be displayed to any one of the HDMI1, HDMI2, and DP interfaces;
3. The first time you set up the video wall controller, you need to connect to the RS232 interface of
the video wall controller through the serial cable.
The installation diagram is as follows:
III. power on
After the above cables are connected, plug in the 100-240V AC power supply,
turn on the power switch of the device,
the power indicator light is red, and the device is in working state;
Ⅳ. Technical Parameters
| Name | Specification |
| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the STetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | Up to 9 HDMI signal outputs can be customized with an output resolution of up to 1920x1080@60HZ. |
| HDMI interface | |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch STnchronously |
| others | |
| Control mode | IR ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 9 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
| Weight(1U) | 2.5KG |
| Product name | Multi Angle 20W HDMI Video Wall Controller With Artistic Freedom |
