Product Details:
|
| Product Name: | 7U 4K Video Wall Controller 4 Ch Input 16 Ch 1080P HDMI Output | Inputs: | 4 Channels 4K HDMI Input Ports |
|---|---|---|---|
| Outputs: | 16 Channels HDMI Output Ports | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
| Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) | System Control Software: | Application Pro Dedicated Control Software |
| Power: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Consumption: | 12w Per Channel |
| Highlight: | 7U 4K Video Wall Controller,1920x1200 4K Video Wall Controller,7U 4k Video Wall Processor |
||

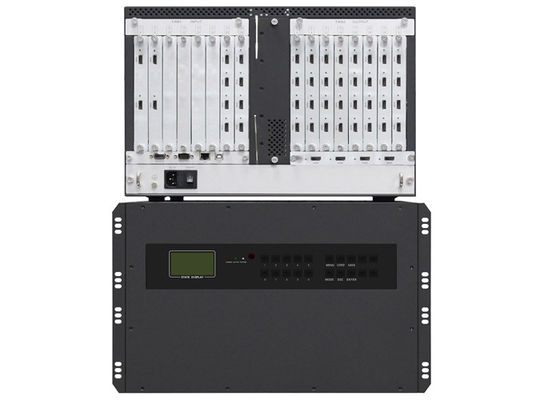

7U 4K Video Wall Controller 4 Ch Input 16 Ch 1080P HDMI Output
Product Introduction:
| WL-HDVP series HD video wall processor | |
| Description | Up to sixteen video windows per display channel |
| Inputs (optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| System control software | CCS Client end,ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| Consumption | 12w per channel |
| Working temperature | "-20℃--60℃ |
| Working humidity | 5-95% |
| Serial port | RS-232, 9 pin, D-type connector |
| Chassis size | 1U/2U/3.5U/7U/12.5U standard rackmount chassis |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed | Self-adaptive 10M or 100M,Full duplex or half duplex |
| Working hours | 7 days x 24 hours |
7U 4K HDMI Video Wall Controller 4 Ch Input 16 Ch 1080P HDMI Output using application fields:
One processor controls several video walls
It can control a video wall plus auxiliary monitors or even multiple video walls which share the input sources.
The outputs are separate and adjustable in teams of resolutions, colors and other parameters.
