Product Details:
|
| Product Name: | 8 In 8 Out 4k Video Wall Controller Hdmi 2x2 , 2x4 | Inputs: | 8 Channels HDMI Input Ports |
|---|---|---|---|
| Outputs: | 8 Channels HDMI Output Ports | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
| Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) | System Control Software: | Application Pro Dedicated Control Software |
| Power: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Consumption: | 12w Per Channel |
| High Light: | 2x4 HDMI Video Wall Controller,RS485 2x2 HDMI Video Wall Controller,RoHs 4k Video Wall Controller |
||

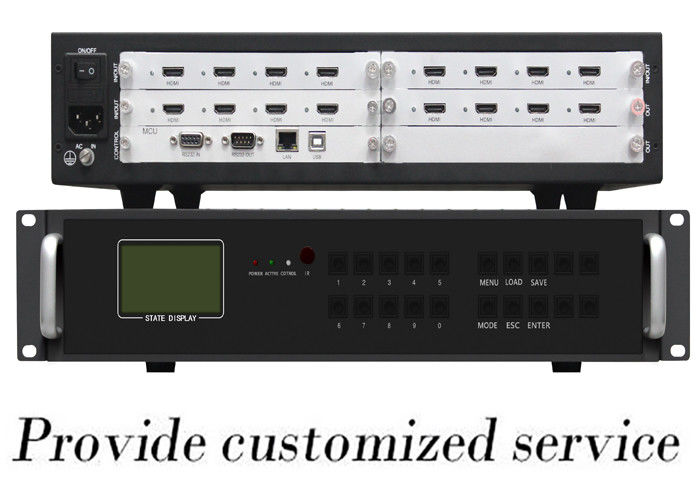

4k 8ch 2x2 HDMI Video Wall Controller HD 1080P Signal Processing
8 In 8 Out 4k Video Wall Controller hdmi 2x2 , 2x4
Product Introduction:
| type | Item | Detail parameters | ||||
| chassis | 1 U | 2U | 3.5 u | 7U | 12.5U | |
| Control board | 1 | 1 | 1 | 1 | 1 | |
| Expansion slots | 1 | 1 | 3 | 1 | 1 | |
| In/out card slots | 2 | 4 | 8 | 16 | 36 | |
| Weight | 8.5KG | 11KG | 18KG | 31.5KG | 49KG | |
| Dimension (L)*(W)* (H)cm | 58*45*21 | 60*54*20 | 62*63*30 | 60*54*47 | 63*59*74 | |
| Board card | Input card | Various input CARDS can be combined arbitrarily: DVI-I board card (support compositevideo, DVI, HDMIL, component, VGA), 4K input card, SDI card, IP input. -STD boad, Information publishing board, etc | ||||
| output card | HDMI Card(inbuilt audio),HDMI Card(inbuilt audio+3.5mm audio port) | |||||
| Control | Communication method | Support TCP network control and serial port control; Support RS232 and RS485 loop out | ||||
| CMS control | DIMP software | |||||
| BS control | No need to install any client software | |||||
| Cross-platform control | Support windows, IOS MACOS, Android, Linux | |||||
HDMI video wall controller using application fields:
Real-time sync of the video wall pictures on PC or iPad/Android Pad Users can preview all the
pictures of input signal through control software before switching and can see the whole video
wall pictures using the same UI control software.
