1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

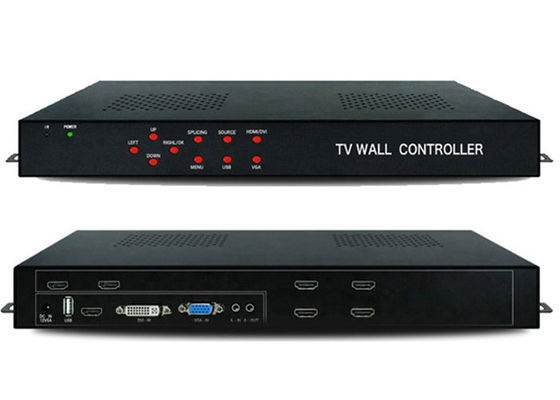

Large Image : 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE ,FCC ,RoHs
Model Number:	WL-TW16

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton boxing ,standard export package for 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication
Delivery Time:	2-3 days
Payment Terms:	T/T,Western Union, MoneyGram,
Supply Ability:	1000 sets per week

Contact Now

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

Description

Interface:	HDMI,DVI,VGA,AV,USB	Resolution:	Up To 1920*1080@60Hz
AV Standard:	PAL,NTSC	HDMI Output:	1024*768@60hz,720P@60Hz,1080P@60Hz
Power:	Input：DC 12V3A	Dimension (package):	5~10 Port: 420mm(L)x243mm(W)x60mm(H)
Weight:	5~10 Port: 2.5 KG	Product Name:	1 In 6 Out HDMI Video Wall Controller 2x3 2x2 Matrix Multiplication
Highlight:	HDMI Video Wall Controller 2x3 , Video Wall Controller 2x3 , 2x2 Video Wall Controller

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication
1.Overview

This 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication is for LCD TV, ultra narrow side LCD screen, projector and so on,high-definition picture mosaic processor can be customized according to user needs 2 to 4 HDMI output splicing. Products with high definition processing chip, support 1080P signal input and output, supports 1 composite video, 1 VGA, 1 USB model, 1 HDMI input, all input signals can be switched to the large screen display, and audio and video synchronization output.

2.Specification

Item	Specification
HDMI input
Interface	HDMI(support HDCP1.3 and DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
DVI input
Interface	DVI(support DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
VGA input
Interface	DB15
Resolution	800600 to 19201080@60Hz
AV input
Interface	RCA
Identification	Auto
Standard	PAL,NTSC
USB
Video	RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P
Audio	MP3,WMA,FLAC and so on
Picture	JPG,BMP,PNG
Text	TXT
Audio in	Fit for VGA video
Audio output	Fit for output video
HDMI output	*1024768@60hz,720P@60Hz,1080P@60Hz**
Controller	Remote, button key, RS232 serial port

Prodcut name

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

3.System Topology

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication 0

4.Remote controller for 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication :

5.Dimension of the 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication :

TV BOX 0106 0109 0110
