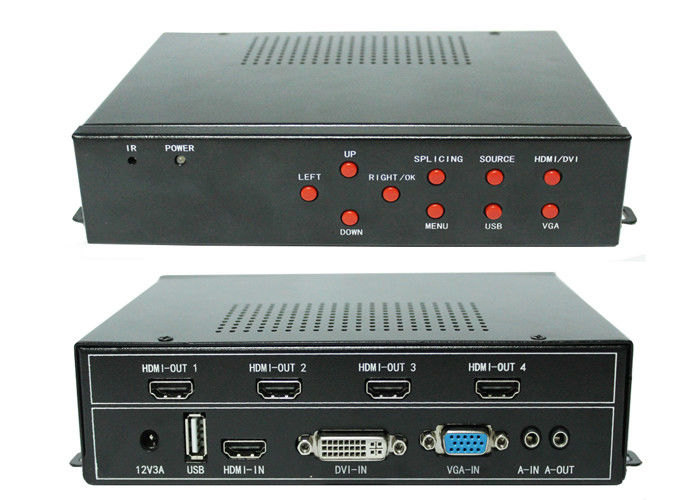

1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display
1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display
1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

Large Image :  1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE ,FCC ,RoHs
Model Number: WL-TW14
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton boxing ,standard export package for 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display
Delivery Time: 2-3 days
Payment Terms: T/T,Western Union, MoneyGram,
Supply Ability: 1000 sets per week
Contact Now

1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

Description
Product Name: 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display Warranty: 1 Year
Max Resolution: 1920*1080 Input: 1input
Output: 4 Output Installation: Wall Mountable/floor Standing
Highlight:

RS232 HDMI Video Wall Controller

,

FCC 1024x768 HDMI Video Wall Controller

,

FCC Multi TV Display Controller

1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

1.Overview
The 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display with many different video

interfaces, include HDMI, VGA, AV, and it is can decode video (like RMVB), audio (like MP3),

Photo (like JPG) by itself through USB interface. Each video with audio can be switched together.

Output HDMI interface, the resolution is 1080P or 720P or 1024*768, chosen by user.

2.HDMI Video Wall Controller Specification

Item Specification
HDMI input
Interface HDMI(support HDCP1.3 and DVI1.0)
Resolution Up to 1920*1080@60Hz
Color 24bit,16.77M
DVI input
Interface DVI(support DVI1.0)
Resolution Up to 1920*1080@60Hz
Color 24bit,16.77M
VGA input
Interface DB15
Resolution 800*600 to 1920*1080@60Hz
AV input
Interface RCA
Identification Auto
Standard PAL,NTSC
USB
Video RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P
Audio MP3,WMA,FLAC and so on
Picture JPG,BMP,PNG
Text TXT
Audio in Fit for VGA video
Audio output Fit for output video
HDMI output 1024*768@60hz,720P@60Hz,1080P@60Hz
Controller Remote, button key, RS232 serial port
Power Input:DC 12V3A
Dimension (package)

4 Port: 340mm(L)x200mm(W)x60mm(H)
5~10 Port: 420mm(L)x243mm(W)x60mm(H)
Weight

4 port: 1.6 Kg
5~10 port: 2.5 KG
Product name 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display

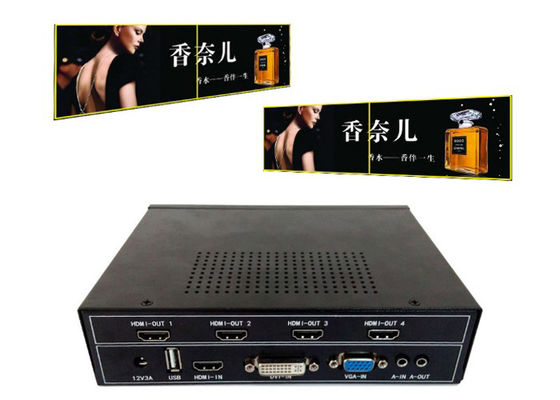

3, System Topology of the 1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display
1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display 0

4, Dimension
1x2 2x2 Digital HDMI Video Wall Controller For Multi TV Display 1
