Product Details:
|
| Product Name: | 1 Input 9 Output HDMI Splitter With Wall Function 1x9 HDMI Video Wall Controller With 3x3 | Input: | 1-ch HDMI Input |
|---|---|---|---|
| Output: | 9ch HDMI | Control Mode: | Remote,button,IR |
| After-sales Service Provided: | Online Support,Video Technical Support,commissioning And Training,Field Maintenance And Repair Service | Panel Size: | 55 Inch,49 Inch,55inch,N/A,46inch |
| Highlight: | 3x3 HDMI Video Wall Controller,9ch Output HDMI Video Wall Controller,3x3 Video Wall Controller |
||
1 input 9 output HDMI splitter with wall function 1x9 HDMI Video Wall Controller with 3x3
1, Overview
The controller is designed to be a truly in/out modular video wall processor, to capture, AD convert,
route, distribute all-format signal to multiple video wall, including LCD TV,DID, DLP, Plasma, etc.,
while maintaining a true digital signal.
2, Specification
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |

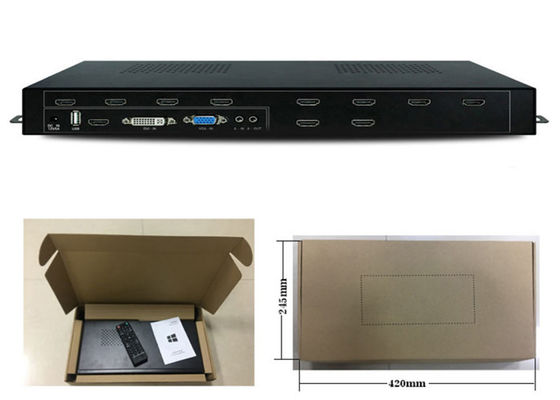

| Dimension (package) |
4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight |
4 port: 1.6 Kg 5~10 port: 2.5 KG |
3, System Topology
4, Remote controller
5, Dimension
