Product Details:
|
| Product Name: | HDMI 1080P 3.5U Casing Video Wall Controller 2x2 4 Input 12 Output | Inputs: | 4 Channels 1080P HDMI Input Port |
|---|---|---|---|
| Outputs: | 12 Channels 1080P HDMI Output Port | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
| Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) | System Control Software: | Application Pro Dedicated Control Software |
| Power: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Consumption: | 12w Per Channel |
| Highlight: | FCC Video Wall Controller 2x2,ROHS Video Wall Controller 2x2,FCC 2x2 TV Wall Controller |
||

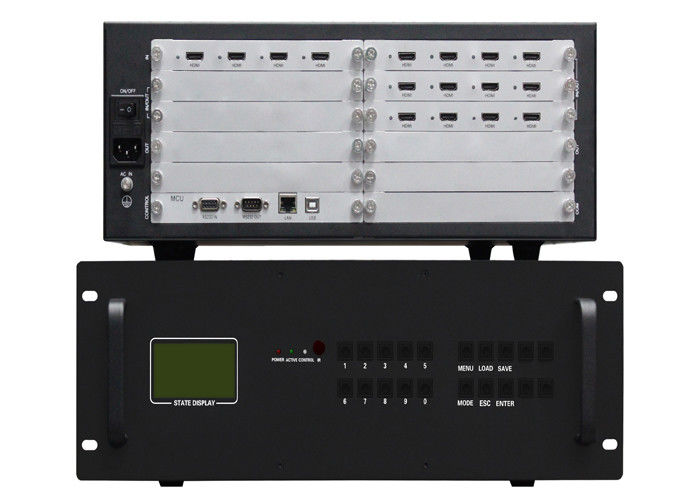

HDMI 1080P 3.5U Casing Video Wall Controller 2x2 4 Input 12 Output
Technical Parameters
| Description | HDMI 1080 P 4 Input 12 Output 3.5 U Casing Video Wall Controller 2x2 |
| Inputs (optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| System control software | CCS Client end,ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| Consumption | 12w per channel |
| Working temperature | "-20℃--60℃ |
| Working humidity | 5-95% |
| Serial port | RS-232, 9 pin, D-type connector |
| Chassis size | 1U/2U/3.5U/7U/15U standard rackmount chassis |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed | Self-adaptive 10M or 100M,Full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Real-time sync of the video wall pictures on PC or iPad/Android Pad Users can preview all the pictures of input signal through control software before switching and can see the whole video wall pictures using the same UI control software. |
| Modular I/O design It uses industrial-level chassis CPCI structure, supports dual power supply hot backup redundant power, offers AV, YpbPr, VGA, RGB, HDMI, DVI, 3G / HD / SD-SDI, IP streming , optical signal input options. |
