Product Details:
|
| Product Name: | 4 In 9 Out 3x3 2x2 HDMI Video Wall Controller With 3.5U Casing | Inputs: | 4 Channels HDMI Input Port |
|---|---|---|---|
| Outputs: | 9 Channels HDMI Output Port | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
| Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) | System Control Software: | Application Pro Dedicated Control Software |
| Power: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Consumption: | 12w Per Channel |
| Highlight: | 2x2 HDMI Video Wall Controller,2x2 HDMI Video Wall Processor,FCC 2x2 Video Wall Controller |
||

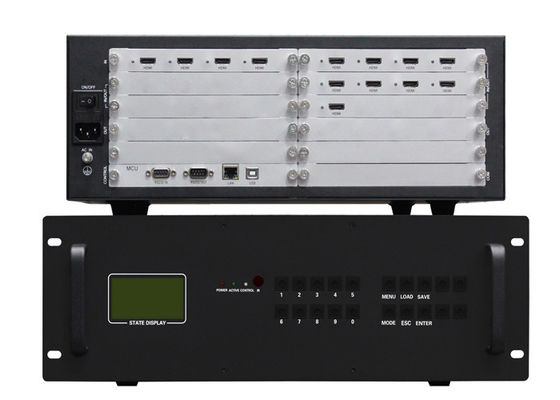

4 In 9 Out 3x3 2x2 HDMI Video Wall Controller With 3.5U Casing
|
Description :
|
Up to sixteen video windows per display channel (Optional) |
|
Inputs (Optional) : |
DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
|
Input resolution :
|
XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
|
Output Signal :
|
DVI/VGA output |
|
Output resolution :
|
1920*1200/60HZ (compatible with standard resolution ) |
|
system control software :
|
Application Pro dedicated control software |
|
Power :
|
: Dual power supplies 100AC~240VAC,50/60Hz, more trustable
hot-swappable power supply working mode, internationally
self-adaptive power |
|
consumption : |
12w per channel |
|
working temperature :
|
-20℃——60℃ |
|
working humidity :
|
5-95%
|
|
Chassis size : |
5U/7U/15U standard rackmount chassis |
|
Serial port : |
RS-232, 9 pin, D-type connector |
|
Baud rate : |
115200 |
|
Serial port architecture :
|
2=TX,3=RX,5=GND |
|
Ethernet control port : |
RJ-45 female ports, TCP/IP protocol |
|
Ethernet control speed :
|
Self-adaptive 10M or 100M, full duplex or half duplex |
|
Working hours : |
7 days x 24 hours |
| Product name | 4 In 9 Out 3x3 2x2 HDMI Video Wall Controller With 3.5U Casing |
Reliable:
The video wall processor adopts the standalone modular hardware architecture design, the equipment power,
cooling fans, signal capture card and output cards are all hot-pluggable. Malfunction of arbitrary module will
not affect the overall system. This design enables the shortest MTTR (Mean Time to Repair) and longest time
MTBF (Mean Time between Failures) to meet the user’s demand on the reliability and stability of video wall
processor system.
1. Q: Are you a factory or trading company ?
A: We are direct manufacturer , respectively located in Shenzhen,Guangdong
province of China. Manufacturing Video wall controller,video wall processor,modular matrix switcher, HDMl
matrix and HDMI Extender etc
2. Q: Could you offer samples for testing our market first ? How long does it take to send samples?
A: Yes, we accept sample orders, usually samples will be sent within 1-2 days.
3. Q: Is there any certificates provide ?
A: Yes , we got CE, ROHS , Fcc , certificates , and with test reports.
4. Q: Can you customize products ?
A: Yes , OEM and ODM is workable for us , just send your needing to us , and our engineers will work on it for you.
