Product Details:
|
| Product Name: | 16 In 16 Out HDMI Video Wall Controller With 3.5 U Casing | Inputs: | 16 Channel HDMI Input Port |
|---|---|---|---|
| Outputs: | 16 Channel HDMI Output Port | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
| Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) | System Control Software: | Application Pro Dedicated Control Software |
| Power: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Consumption: | 12w Per Channel |
| Highlight: | 16 Channel HDMI Video Wall Controller,3.5U Casing HDMI Video Wall Controller,3.5U Casing 16 Channel Controller |
||

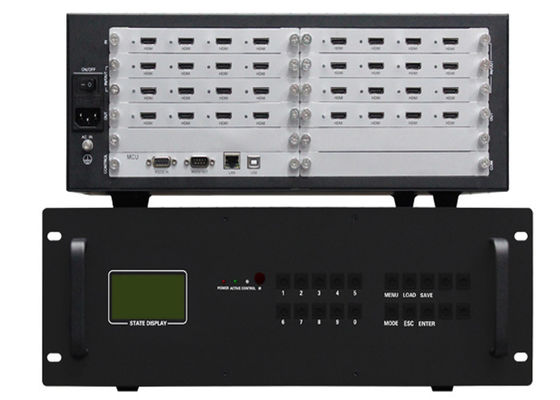

16 Channel HDMI Video Wall Controller with 4x4 , 3x2 , 3x3 and custom made supported
|
Description :
|
Up to sixteen video windows per display channel (Optional) |
|
Inputs (Optional) : |
DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
|
Input resolution :
|
XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
|
Output Signal :
|
DVI/VGA output |
|
Output resolution :
|
1920*1200/60HZ (compatible with standard resolution ) |
|
system control software :
|
Application Pro dedicated control software |
|
Power :
|
: Dual power supplies 100AC~240VAC,50/60Hz, more trustable
hot-swappable power supply working mode, internationally
self-adaptive power |
|
consumption : |
12w per channel |
|
working temperature :
|
-20℃——60℃ |
|
working humidity :
|
5-95%
|
|
Chassis size : |
5U/7U/15U standard rackmount chassis |
|
Serial port : |
RS-232, 9 pin, D-type connector |
|
Baud rate : |
115200 |
|
Serial port architecture :
|
2=TX,3=RX,5=GND |
|
Ethernet control port : |
RJ-45 female ports, TCP/IP protocol |
|
Ethernet control speed :
|
Self-adaptive 10M or 100M, full duplex or half duplex |
|
Working hours : |
7 days x 24 hours |
