Product Details:
|
| Frequency Response: | 20 Hz-20 KHz, +0/-0.5 DB | Dynamic Range: | 116 DB A Weighting |
|---|---|---|---|
| Channel Separation: | < -100 DB | Distortion (THD): | 0.003%, 1kHz At 0 DBu |
| Input Metering: | -24 DB,-12 DB,-6 DB, 0 DB +6 DB,+12 DB,+24 DB | Product Name: | DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control |
| Highlight: | 1X2 HDMI Splitter Switcher,HDMI Splitter 1x2,225MHz HDMI Switch 1 In 2 Out |
||
Description:

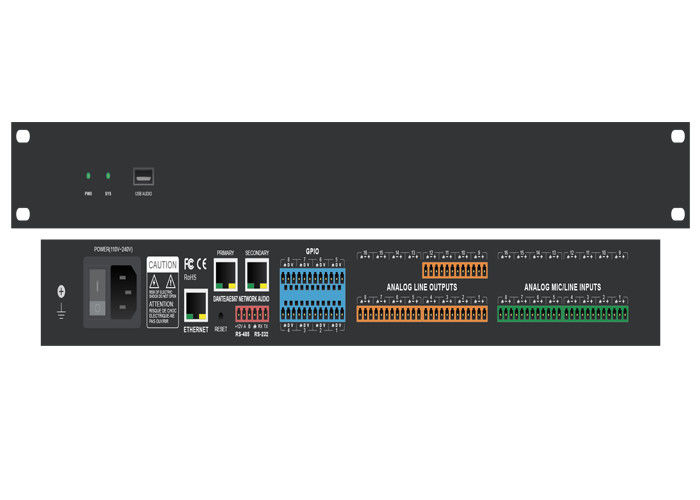

The DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit. Designed for applications such as zoning and permanent installations, PA systems and stage monitor set ups, the DSP-226 features two balanced analogue inputs, six balanced outputs using XLR connectors, RS485 in/out and USB socket on the front panel.
Specification :
|
Item
|
Specifications |
| Max Input Level | 18dBu |
| Max Output Level | 18dBu |
| Default Output Level | 0dBu |
| THD+N | <0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
| Frequency Response | 20Hz-20kHz, +/-0.2dB |
| In To Out dynamic range | 110dB (Unrecorded right) |
| S/N | -110dB (Unrecorded right) |
| ADC Dynamic Range | CS5361 114dB |
| DAC Dynamic Range | CS4382A 114dB |
| DSP | 400Mhzfloating - point SHARC ADSP-21488 |
| Sampling Frequency | 48K |
| QE | 24Bit |
| Storage | 32 |
| Control Mode | 100M Ethernet |
| Language | English |
| Noise Gate | Yes |
| Feedback | Yes |
| Signal Generator | Yes |
| Pressure Limiter | Independent 12 channel |
| Delay | Output 1-4 218ms Output 5-8 148ms |
| PEQ Low Shelf High Shelf |
Independent 16-band |
| High Pass/Low Pass Bessel Butterworth Link-Riley |
Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
| Product name | DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control |
Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.
DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control.
