Product Details:
|
| TRASNMITTER: | TRANSMITTER | Interface: | SDI Output(BNC Female); HDMI Output(Type A Female); DC Input(4pin LEMO Female) |
|---|---|---|---|
| Supply Voltage Range: | 7-36V DC | Transmission Range: | 150 Meters |
| Power Consumption: | < 6W | Size: | (L X W X H): 95.4*152.2*26mm |
| Input Video Format: | SDI:3G, HD, And SD-SDI(Auto-Selected): HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/ 30/50/59.94/60; | Video Processing Color Depth: | RSSI-Blue(5 LEDs); Link-Yellow; VIDEO-Green |
| High Light: | SDI HDMI Wireless Extender,150m HDMI Wireless Extender,150m HDMI Wifi Extender |
||

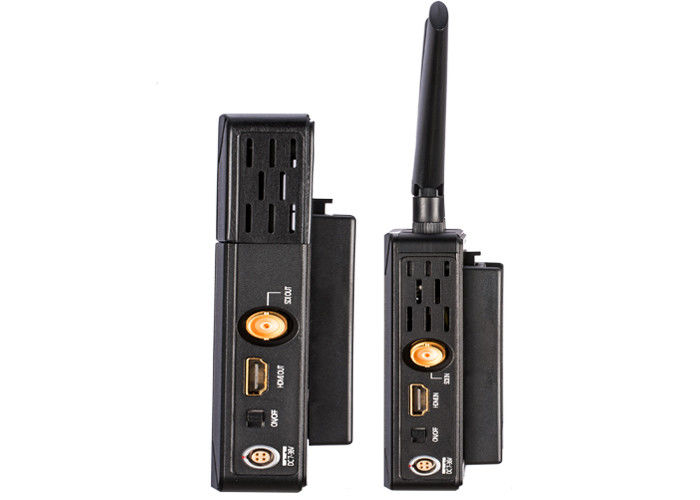

150 Meters 3G SDI HDMI Wireless Extender Without Any Latency
PRO150,150 meters WHDI HDMI&3G-SDI wireless extender without any latency
Features:
1. Sony F970 battery buckle, convenient for field battery install and replacement.
2. All input and output ports have +-8 kV ESD protection level(HBM, contact discharge).. Plug & Play – no software is required.
3. Professional standard 4-pin LEMO power plugs.
4. Each RX(receiver) paired to the unique TX(transmitter) in factory.
5. industrial metal and plastic case with robust cooling and durability.
6. RX built-in directional antenna.
7. Signal indicators for wireless power status, Video status and receiver RSSI.
8. The hard carrying case provide water and shock proof to product.
Specification
|
|
|
/ |
|
SDI:3G, HD, |
|
|
|
|
|
|
and SD-SDI(Auto-Selected): |
|
||
|
|
|
|
|
|
||
|
Output Video Format |
|
|
|
HDMI: 525i, 625i, |
|
|
|
|
|
|
720p 50/59.94/60, |
|
||
|
|
|
|
|
|
||
|
|
|
|
|
1080i 50/59.94/60, 1080p23.98/24/25 |
|
|
|
|
|
|
|
/29.9/30/50/59.94/60; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Video Processing Color Depth |
|
Link-Yellow； VIDEO-Green |
|
RSSI-Blue(5 LEDs); Link-Yellow; |
|
|
|
|
|
VIDEO-Green |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency Band |
|
5.1-5.9GHz,configurable with China, |
|
5.1-5.9GHz,configurable with China, |
|
|
|
|
North America, Europe, etc |
|
North America, Europe, etc |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Modulation Mode |
|
OFDM 16QAM |
|
OFDM 16QAM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transmission Power |
|
Maximum 15dBm |
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Receiver Sensitivity |
|
/ |
|
-75dBm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Occupied Bandwidth |
|
20/40MHz |
|
20/40MHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature Range |
|
0-40℃(working temperature); |
|
0-40℃(working temperature); |
|
|
|
|
|
-20-60℃(storage temperature) |
|
-20-60℃(storage temperature) |
|
|
|
|
|
|
|
|
|
|
Installation
1) Ensure the video source output of the camera is OK, and the HD monitor is powered on and switched to connected video input
port.

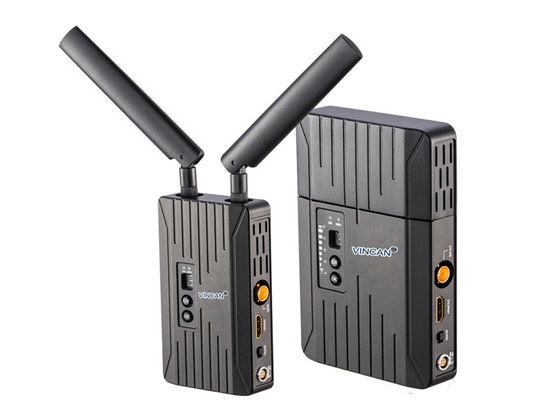

2) Ensure 2 TX antennas are installed. For optimal results set the dual antennas in the form of a “V” and maintain unobstructed line of
sight between transmitter and receiver. Below figure for your reference
3) Ensure all input, output SDI or HDMI cables are connected.
4) Ensure both transmitter and receiver are powered via battery or DC input. Then turn on power switch of the transmitter and receiver respectively. The POWER indicator will then light.
5) Ensure the transmitter and receiver is set with the same frequency.
6) If the camera is on and video input is OK, TX side VIDEO indicator will light.
7) Before RX finished wireless link with TX, RSSI indicators and VIDEO indicators are off; when wireless link is done, RSSI indicators will
light first and indicate the signal strength. If the receiver detects wireless video normal internally from air interface, VIDEO
indicator will light. Before that, If SDI or HDMI video out port of the receiver has HD monitor connected, it will display an OSD of
Link connecting as in the figure below.
8) The system will spend 20-30 seconds constructing the link, depending on link strength and the signal channel condition. When wireless link is
established the RSSI light will illuminate, indicating the current wireless signal strength, VIDO indicators will light, and the connected HD monitor
will be playing the real-time video and audio.
Frequency Selection
The wireless transmission system works in the 5.1-5.9GHz frequency band and can be flexibly configured to other licensed or ISM bands to
accommodate different global regions. The front panel of the transmitter features a frequency selection button (see below illustration), which
provides a maximum of 4 workable frequency channels, and supports a maximum of 4 simultaneous receiver units.
