Product Details:
|
| Casing Height: | 2 U | TX Channels: | 12-ch |
|---|---|---|---|
| Color: | Black | Warraty Time: | 1 Year |
| Product Name: | Vincan Ultra Slim 4K HDMI Via HDBaseT 70 Meter Exender With 12 HDBaseT Output Ports | ||
| Highlight: | 70M HD Video Extender,2.97Gbps HD Video Extender,70M HDMI HDBaseT Extender |
||
Features:
1. Transmission distance:70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit
4K x 2K@30Hz@24bit.
2. HDMI V1.4 supported.
3. HDCP compliant.
4. Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
5. Transfer Bidirectional Infrared control signal together with the HDMI signal.
6.2.97Gbps No Latency HDMI HDBaseT IR 70M HD Video Extender.
7.Vincan Ultra Slim 4K HDMI Via HDBaseT 70 Meter Exender With 12 HDBaseT Output Ports
Production Specifications
| Function | Number of input signal | Transmitter:12-CH(DVI,HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,HDMI,IR,Remote switch) | |
| Transmission distance |
WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
|
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) | |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K | |
| Maximum Transfer Rate | 10Gbps | |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal | |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range |
Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption |
Transmitter:5W Receiver:5W |
|
| Appearance attribute | Size (L×W×H) |
Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing | |
| Color | Black | |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) | |
| Working Temperature | -15℃-55℃ | |
| Product name | Vincan Ultra Slim 4K HDMI Via HDBaseT 70 Meter Exender With 12 HDBaseT Output Ports | |

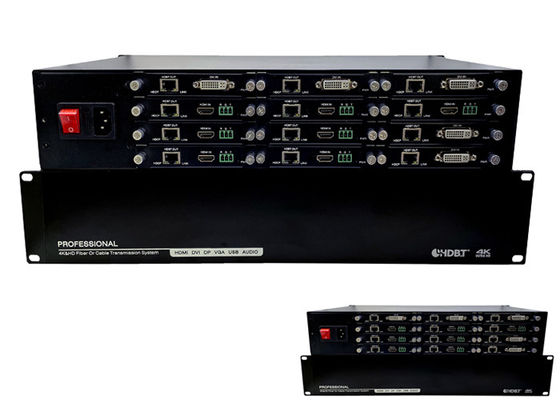

Connection picture:
Vincan Ultra Slim 4K HDMI Via HDBaseT 70 Meter Exender With 12 HDBaseT Output Ports
