Product Details:
|
| Optical Fiber Interface: | HDMI Interface | Power Supply: | Single -circuit:DC 12V/1A |
|---|---|---|---|
| Interface: | HDMI-A Interface | Support Protocol: | HDMI2.0 |
| Transmission System: | Fiber Optical | Product Name: | 4K HDMI Optical Extender |
| Bandwidth: | High-Bandwidth | Operating Temperature: | 0°~40°C/32°F~104°F |

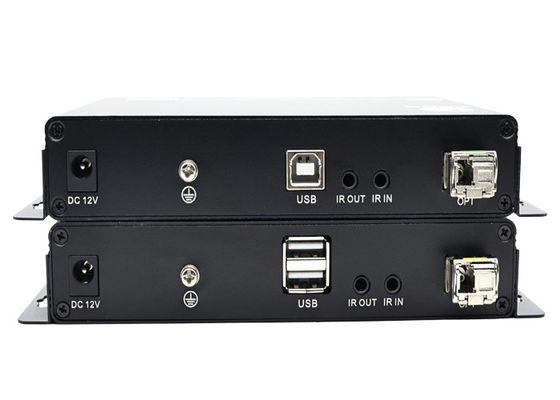

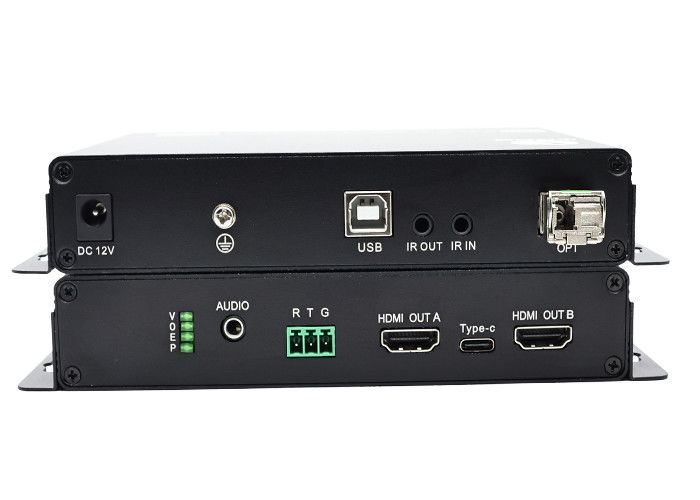

This 4K HDMI Fiber Optic Extender provides seamless, uncompressed transmission of HDMI 2.0b signals over a single-mode or multimode fiber line, supporting a bandwidth of 18Gbps and rich color depth at RGB 4:4:4. With the ability to extend 4K@60Hz signals up to 300m (using multimode dual-core SFP) or 10km (using single-mode single-core SFP), it ensures long-distance, interference-free HDMI transport. Ideal for integrators, this extender features HDMI input/output, RS-232 control, EDID management, and a Gigabit Ethernet port for point-to-point extensions. Perfect for LED installations, control environments, and applications requiring reliable, high-quality video transmission with audio I/O support.
| Video | Supported Protocol | HDMI 2.0b |
| Video Bandwidth | 18Gbps | |
| HDCP | HDCP 2.2 | |
| Interface Bandwidth | 18Gbps | |
| Color Depth | RGB4:4:4 8-bit downward compatible | |
| Video Color Space | RGB4:4:4, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Interface | HDMI-A interface | |
| Impedance | 100Ω | |
| Suggested Maximum HDMI Cable Input/Output Distance | Less than 10M. When the resolution is above 1920×1080@60Hz,it can reach 30M when using a cable with equalization. | |
| Audio | Audio Mode | Stereo |
| Audio Interface | 3.5mm stereo audio socket | |
| Audio Signal Type | Audio embedding and de-embedding | |
| RS232 | Interface | Phoenix Terminal |
| Signal Direction | Bidirectional Transmission | |
| Baud Rate | Default 38400bps, can be manually selected from 600-115200bps | |
| IR | IR Frequency | 38KHz |
| Optical Fiber | Optical Fiber Interface | LC Interface |
| Optical Fiber Type | Single -Mode | |
| Wavelength | TX1330/RX1270nm；TX1270nm/RX1330nm | |
| Interface Bandwidth | 10G | |
| Suggested Maximum Transmission Distance | Single-Mode Optical Fiber:10km | |
| Other | Power Supply | Single -circuit:DC 12V/1A |
| Maximum Power Consumption | Without KVM:max 4W;With KVM:max 6W | |
| Operating Temperature | 0°~40°C/32°F~104°F | |
| Humidity | 20~90% RH(No Condensation) | |
| Storage Temperature | -20°~60°C/-4°F~104°F | |
| Operating Time | 7*24 hours |
This professional HDMI over fiber extender is an ideal solution for industries requiring stable, high-resolution video transmission, including broadcast media, corporate video conferencing, medical diagnostics, education livestreaming, and 24/7 surveillance systems. With full HDMI 2.0 support and resolutions up to 4K@60Hz.
