Product Details:
|
| Resolution: | 4k*2k 60Hz (YUV 4:2:0) | WDM Filter: | Integrated 1310nm/1550nm Filter |
|---|---|---|---|
| Input And Output Signals: | TMDS Level (complying With DVI1.0) | Module Dimension (mm): | 59.5LX20.0WX10.5H |
| Optical Connector: | 1X LC Connector | Electric Connector: | HDMI Plug |
| Recommended Fiber: | OM3 MM Fiber Or Single-mode Fiber | Extend Distance: | 300m |
| High Light: | 300m HD Video Extender,1310nm HD Video Extender,1550nm Mini HDMI Extender |
||
1xLC Mini 300m HD Video Extender 1310nm 1550nm Laser HDMI Plug
1xLC HDMI Fiber Extender 1310/1550nm Laser, 300m
Features:
*** Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4);
*** Support resolution 3840*2160/30Hz(Y:U:V 4:2:0)
*** Extned the DVI data up to 300 meters over OM3 MMF or SMF Fiber;
*** Support HDCP;
*** Detachable feature with 1x LC OM3 MM Fiber or SM Fiber;
*** The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs;
*** Includes two (2) +5V DC power adapters for the transmitter and receiver ;
*** Micro USB-B power connector;
*** Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present ;
Applications:
*** Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
*** Digital FPDs and projectors in conference room and auditorium
*** Kiosk with digital FPDs showing full motion graphic displays from remote systems
*** PDP displays for information in public sites
*** LED signboards in streets and in stadiums
Application diagram:

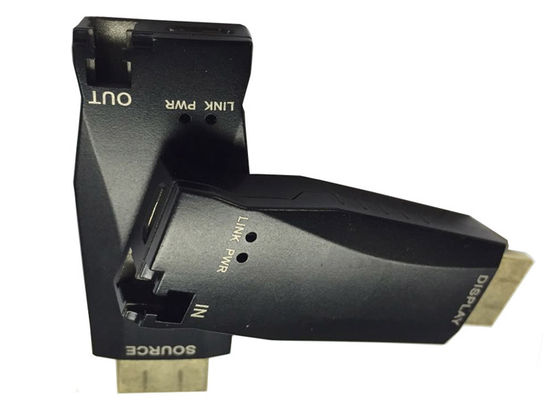

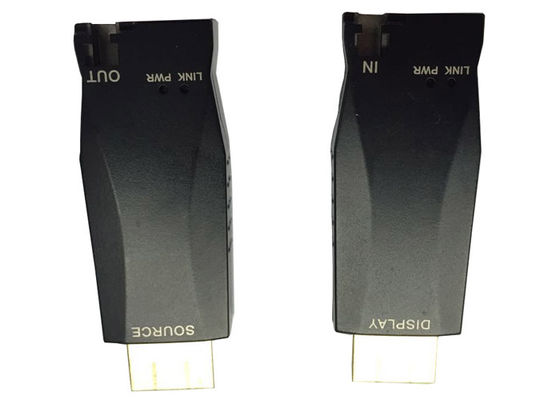

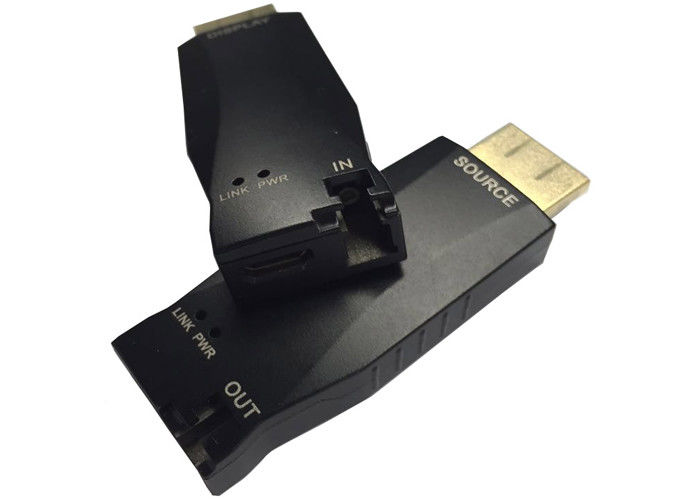

Products' picture:
Description:
WLHDMI-304S-TR optical extension module consists of transmitter module and receiver module, each of which has a LC connectors and a HDMI plug. Users could decide extension length at their discretion by choosing the length of fibre-optic cables with LC ferrules at the ends. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multi-mode glass fibers or Single-Mode fibers.
The communication between the WLHDMI-304S-T and WLHDMI-304S-R is bidirectional ,the data rate from the –T to –R is 10.2Gb/s with 1310nm, and from the –R to –T is 250Mb/s with1550nm, the 1310nm and 1550nm optical signals are multiplexed to one fiber with a 1310/1550nm WDM filter insider the HDMI extender.
The WLHDMI-304S HDMI Extender compliant HDMI 1.4 standard, It Support resolution is up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support distance up to 300m over OM3 MMF and SMF.
The Extenders are constituted of three parts as follows;
- One transmitter; P/N: WLHDMI-304S-T
- One receiver; P/N: WLHDMI-304S-R
- Two AC Adaptors to 110V-240V with DC 5V 1A outlet
Technical Specifications
- Specifications
- General Specifications
|
|
Parameter |
Specifications |
|
Resolution |
4k*2k 30Hz |
3840x2160/30Hz (YUV 4:4:4) |
|
4k*2k 60Hz |
3840x2160/60Hz.(YUV 4:2:0) |
|
|
Components |
Laser Diodes in Tx Module |
1310nm FP laser and 1550nm PIN PD |
|
Photo Diodes in Rx Module |
1550nm FP laser and 1310nm PIN PD |
|
|
WDM filter |
Integrated 1310nm/1550nm filter |
|
|
Electrical |
Input and Output Signals |
TMDS Level (complying with DVI1.0) |
|
Data Transfer Rate (Graphic Data) |
Max. 3.4Gbps |
|
|
Maximum Pixel Clock Frequency |
340Mb/s |
|
|
Maximum Video Bit Rate |
10.3Gb/s |
|
|
Total Jitter at the end of Rx output |
Max. 309 ps |
|
|
Skew inter-channels |
Max. 6ns |
|
|
Optical |
Link Power Budget |
Min 8.5dB |
|
Mechanical |
Module dimension (mm) |
59.5LX20.0WX10.5H |
|
Connector |
Optical Connector |
1X LC connector |
|
Electric Connector |
HDMI plug |
|
|
Recommended Fiber |
OM3 MM Fiber or Single-mode Fiber |
|
|
Extend Distance |
300m |
|
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
VCC |
- 0.3 |
+ 6.0 |
V |
|
Input and Output Voltage |
Vin/out |
- 0.3 |
VCC |
V |
|
Operating Temperature |
Top |
0 |
70 |
°C |
|
Operating Relative Humidity |
RHop |
5 |
80* |
%RH |
|
Storage Temperature |
Tsto |
- 40 |
+ 85 |
°C |
|
Storage Relative Humidity |
RHsto |
5 |
95* |
%RH |
Operating Conditions
Transmitter module (E-to-O converter); P/N WLHDMI-302S-T
|
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
|
Power Supply |
Supply Voltage |
Vcc |
4.5 |
5.0 |
5.5 |
V |
|
Supply Current |
ITcc |
- |
280 |
320 |
mA |
|
|
Power Dissipation |
PRX |
- |
1.4 |
1.76 |
W |
|
|
Power Supply Rejection |
PSR |
|
50 |
|
mVp-p |
|
|
TMDS |
Data Input Load |
RLD |
|
50 |
|
Ω |
|
Graphic Supply Voltage |
GVCC |
+ 3.1 |
+ 3.3 |
+ 3.5 |
V |
|
|
Single-Ended Output Swing Voltage |
GVISWING |
0.4 |
- |
0.8 |
V |
|
|
Optical Link |
10.2Gb/s transmitter |
|||||
|
Optical output Power |
Po |
-6.0 |
|
0 |
dBm |
|
|
Data Rate |
B |
|
10.3 |
|
Gb/s |
|
|
Receiving Wavelength |
λ |
1260 |
1310 |
1360 |
nm |
|
|
ER |
Er |
3.5 |
|
7 |
dBm |
|
|
Δλ |
|
|
|
2 |
nm |
|
|
250Mb/s Receiver |
||||||
|
Receiving Optical Power |
Po |
-25 |
|
0 |
dBm |
|
|
Data Rate |
B |
|
250 |
|
Mb/s |
|
|
Receiving Wavelength |
λ |
1490 |
1550 |
1610 |
nm |
|
|
Signal Detect Good |
SDg |
|
|
-25 |
dBm |
|
|
Signal Detect Fail |
SDf |
-27 |
|
|
dBm |
|
|
Link Power Budget |
Pbgt |
9.0 |
|
|
dB |
|
|
Total Jitter |
TRjitter |
|
|
309 |
ps |
|
Receiver module; P/N: WLHDMI-302S-R:
|
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
|
Power Supply |
Supply Voltage |
Vcc |
4.5 |
5.0 |
5.5 |
V |
|
Supply Current |
IRcc |
- |
280 |
320 |
mA |
|
|
Power Dissipation |
PRX |
- |
1.4 |
1.76 |
W |
|
|
Power Supply Rejection |
PSR |
|
50 |
|
mVp-p |
|
|
TMDS |
Data Output Load |
RLD |
|
50 |
|
Ω |
|
Graphic Supply Voltage |
GVCC |
+ 3.1 |
+ 3.3 |
+ 3.5 |
V |
|
|
Single-Ended Output Swing Voltage |
GVISWING |
0.4 |
- |
0.8 |
V |
|
|
Optical Link |
10.2Gb/s Receiver |
|||||
|
Receiving Optical Power |
Po |
-14.5 |
|
0 |
dBm |
|
|
Data Rate |
B |
|
10.3 |
|
Gb/s |
|
|
Receiving Wavelength |
λ |
1260 |
1310 |
1360 |
nm |
|
|
Signal Detect Good |
SDg |
|
|
-14 |
dBm |
|
|
Signal Detect Fail |
SDf |
-15 |
|
|
dBm |
|
|
Link Power Budget |
Pbgt |
8.5 |
|
|
dB |
|
|
Total Jitter |
TRjitter |
|
|
309 |
ps |
|
|
250Mb/s Transmitter |
||||||
|
Optical output Power |
Po |
-9.0 |
|
-3 |
dBm |
|
|
Data Rate |
B |
|
250 |
|
Mb/s |
|
|
Receiving Wavelength |
λ |
1490 |
1550 |
1610 |
nm |
|
|
ER |
Er |
9 |
|
|
dBm |
|
|
Δλ |
|
|
|
4 |
nm |
|
Recommended Specifications of Fibre-Optic Cables
|
Parameters |
Conditions |
Specifications |
|
Fiber Type |
|
OM3 MM Fiber or SM Fiber |
|
Fiber Cable Attenuation |
SM Fiber λ = 1310nm |
Max. 0.5dB/km |
|
OM3 MM Fiber λ = 1310nm |
Max. 3.5dB/km |
|
|
Extension Distance |
SM Fiber |
300m |
|
OM3 MM Fiber |
300 m |
|
|
Skew |
|
Max. 0.4ns |
|
Insertion Attenuation |
|
Max. 0.5dB |
|
Total Optical Attenuation |
In 330 ft (100 meter) extension |
Max. 1.5dB |
Note*: some plastic couplers to clamp two LC connectors could not fit in.
Drawing
Installation:
Note: Please install the optic HDMI extender according to the following step, if not, the extender
should be not working.
1. Connect the WLHDMI-304S-T to the Video source and connect the WLHDMI-304S-R to the
display;
2. Connect the Fiber between the WLHDMI-304S-T and WLHDMI-304S-R,
3. Connect the External Power Supply to WLHDMI-304S-T and WLHDMI-304S-R.
4．Apply the power to the system.
